手と目のキャリブレーション不良(回転方向の規則が間違っている)のため、タッチテストは安全に実施できません。
問題
ハンドアイキャリブレーションの結果は不良であり、タッチテスト を安全に実行することはできません。
手と目の変形 |
手と目の残差 |
投影検証 |
タッチテスト |
|---|---|---|---|
悪い |
悪い |
悪い |
危険 |
ロボットのポーズを変換する際に誤った回転規則を使用した場合は、正しい規則を使用してハンドアイキャリブレーションを再実行してください(以下の 潜在的な解決策 を参照)。
手と目のキャリブレーション結果が悪い例
手と目の変換行列は正しくないように見えます。なぜなら、そのいくつかの値が物理的な測定値と非常に大きく異なっており、この設定では妥当ではないからです。
-0.402 |
0.908 |
-0.117 |
134.552 |
-0.910 |
-0.411 |
-0.060 |
-440.257 |
-0.102 |
0.082 |
0.991 |
-706.041 |
0 |
0 |
0 |
1 |
この設定では、値 -706.040 はおよそ 130 mm、値 -440.256 はおよそ 90 mm であることが期待されます(期待値はカメラとキャリブレーション対象物との幾何学的配置によって異なります)。この段階では、符号(+/-)は座標系の定義に依存するため無視し、距離のみに注目します。
較正残差も予想よりかなり大きく、数桁高い値を示している。
N(ポーズ) |
回転平均度(°) |
最大回転角度(°) |
平均転位(mm) |
最大トランスミッション値(mm) |
|---|---|---|---|---|
14 |
10.764 |
20.647 |
99.307 |
176.708 |

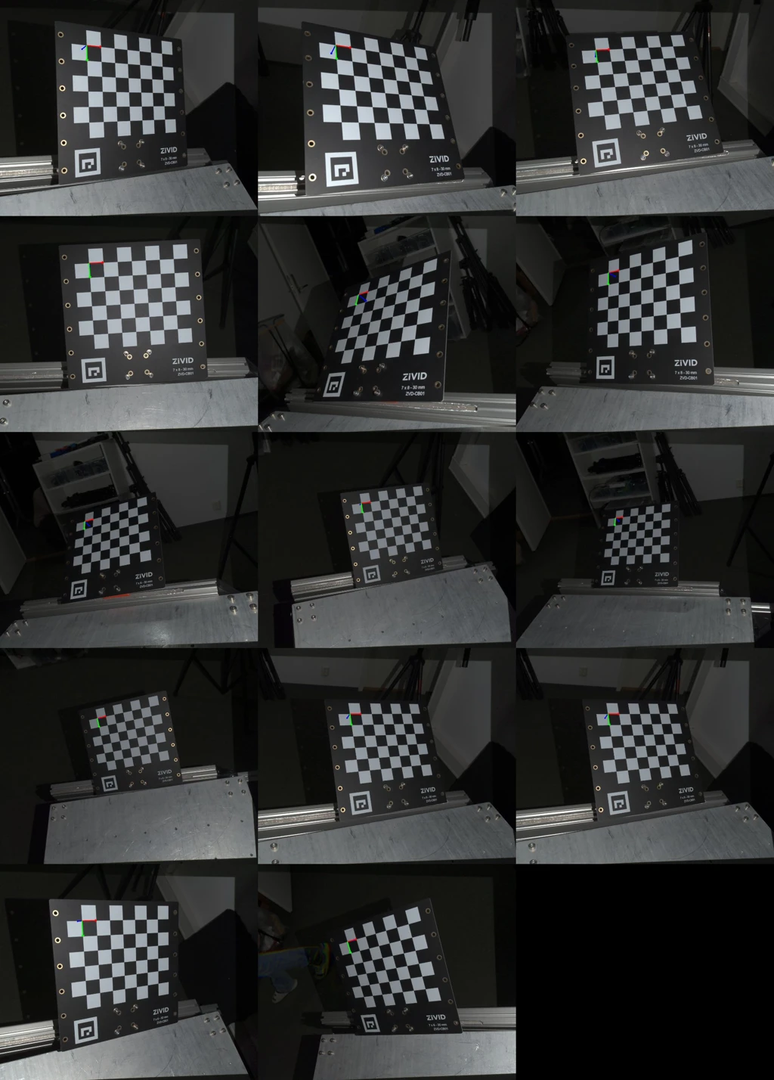

小型のロボットでは、残差はサブミリメートルの範囲になると予想されますが、大型のロボットでは、残差がミリメートルの範囲になることもあります。残差の回転成分については、サブ度の範囲になると予想されます。
完全残余
ポーズ |
回転角度(°) |
翻訳(mm) |
|---|---|---|
1 |
1.800 |
46.595 |
2 |
15.119 |
64.707 |
3 |
14.726 |
143.476 |
4 |
7.726 |
176.708 |
5 |
12.562 |
99.719 |
6 |
5.175 |
94.542 |
7 |
20.020 |
109.891 |
8 |
14.028 |
92.717 |
9 |
20.647 |
88.241 |
10 |
10.870 |
142.423 |
11 |
1.818 |
52.156 |
12 |
7.910 |
108.207 |
13 |
11.969 |
65.376 |
14 |
6.329 |
105.534 |

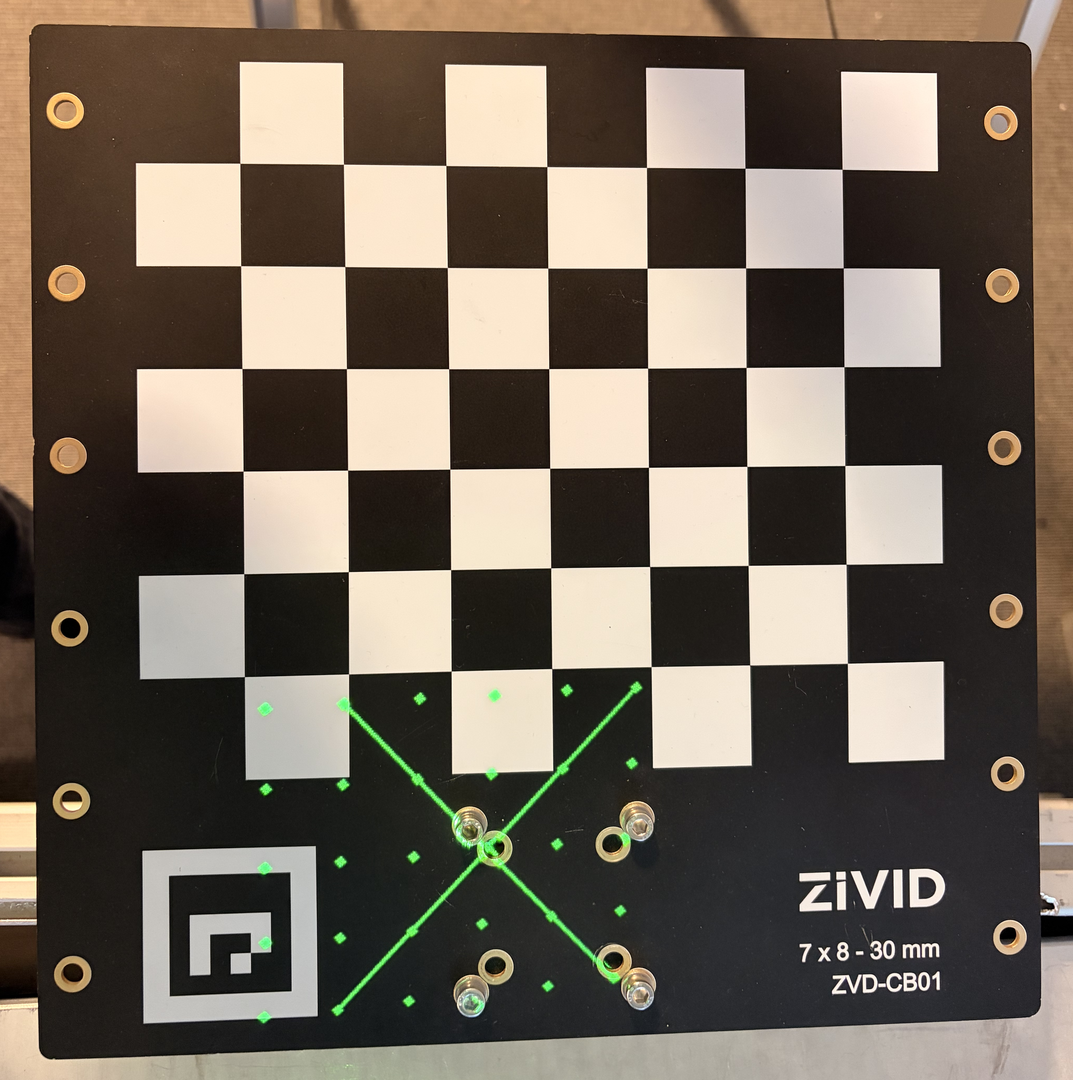

投影による検証が失敗したということは、手と目のキャリブレーションが正しくないことを示唆しており、タッチテストも大きく失敗するだろう。
潜在的な原因
ロボットコントローラーから PC にポーズデータを転送する際に、誤った回転規則が使用されたため、ポーズデータが変換された。
ロボットの姿勢変換に誤った回転規則が用いられると、方向情報が不正確になります。ハンドアイキャリブレーションは正確な回転データに大きく依存するため、わずかな規則の不一致でも大きな方向誤差が生じ、結果として変換結果が損なわれます。これにより、極めて大きな残差、投影検証の失敗、そして完全に無効なハンドアイ変換行列が発生し、タッチテストが安全に実行できなくなります。
補助ツール:ポーズ変換
Zivid は主に(4x4)変換行列(回転行列+並進ベクトル)で動作します。ロボットコントローラとソフトウェアは通常、ポーズを位置ベクトルと向きの表現の組み合わせとして、さまざまな形式で表現します。ポーズ変換ツールは、以下の形式間の変換を支援します。
軸角
回転ベクトル
ロール・ピッチ・ヨー
オイラー角
四元数
ロボットの姿勢変換のためのツールをいくつかご用意しています。
コードサンプル
/*
Convert to/from Transformation Matrix (Rotation Matrix + Translation Vector).
Zivid primarily operate with a (4x4) transformation matrix. This example shows how to use Eigen to
convert to and from: AxisAngle, Rotation Vector, Roll-Pitch-Yaw, Quaternion
Note: the translation part of the transformation matrix is in millimeters (mm), since Zivid point clouds are in
millimeters. If your robot reports translation in meters, multiply it by 1000 before saving the pose.
The convenience functions from this example can be reused in applicable applications. The YAML files for this sample can
be found under the main instructions for Zivid samples.
For more information on pose conversions, check out this article:
https://support.zivid.com/en/latest/camera/reference-articles/pose-conversions.html
*/
#include <Zivid/Zivid.h>
#include <Eigen/Core>
#include <Eigen/Dense>
#include <Eigen/Geometry>
#include <iomanip>
#include <iostream>
#include <stdexcept>
namespace
{
enum class RotationConvention
{
zyxIntrinsic,
xyzExtrinsic,
xyzIntrinsic,
zyxExtrinsic,
nofROT
};
constexpr size_t nofRotationConventions = static_cast<size_t>(RotationConvention::nofROT);
struct RollPitchYaw
{
RotationConvention convention;
Eigen::Array3f rollPitchYaw;
};
std::string toString(RotationConvention convention)
{
switch(convention)
{
case RotationConvention::xyzIntrinsic: return "xyzIntrinsic";
case RotationConvention::xyzExtrinsic: return "xyzExtrinsic";
case RotationConvention::zyxIntrinsic: return "zyxIntrinsic";
case RotationConvention::zyxExtrinsic: return "zyxExtrinsic";
case RotationConvention::nofROT: break;
default: throw std::runtime_error{ "Unhandled rotation convention " };
}
throw std::invalid_argument("Invalid RotationConvention");
}
// The following function converts Roll-Pitch-Yaw angles in radians to Rotation Matrix.
// This function takes an array of angles, and a rotation convention, as input parameters.
// Whether the axes are moving (intrinsic) or fixed (extrinsic) is defined by the rotation convention.
// The order of elements in the output array follow the convention, i.e., for ZYX and zyx, the first
// element of the array is rotation around z-axis, for XYZ and xyz, the first element is rotation
// around x-axis.
Eigen::Matrix3f rollPitchYawToRotationMatrix(const Eigen::Array3f &rollPitchYaw, const RotationConvention &rotation)
{
switch(rotation)
{
case RotationConvention::xyzIntrinsic:
return (Eigen::AngleAxisf(rollPitchYaw[0], Eigen::Vector3f::UnitX())
* Eigen::AngleAxisf(rollPitchYaw[1], Eigen::Vector3f::UnitY())
* Eigen::AngleAxisf(rollPitchYaw[2], Eigen::Vector3f::UnitZ()))
.matrix();
case RotationConvention::zyxExtrinsic:
return (Eigen::AngleAxisf(rollPitchYaw[2], Eigen::Vector3f::UnitX())
* Eigen::AngleAxisf(rollPitchYaw[1], Eigen::Vector3f::UnitY())
* Eigen::AngleAxisf(rollPitchYaw[0], Eigen::Vector3f::UnitZ()))
.matrix();
case RotationConvention::zyxIntrinsic:
return (Eigen::AngleAxisf(rollPitchYaw[0], Eigen::Vector3f::UnitZ())
* Eigen::AngleAxisf(rollPitchYaw[1], Eigen::Vector3f::UnitY())
* Eigen::AngleAxisf(rollPitchYaw[2], Eigen::Vector3f::UnitX()))
.matrix();
case RotationConvention::xyzExtrinsic:
return (Eigen::AngleAxisf(rollPitchYaw[2], Eigen::Vector3f::UnitZ())
* Eigen::AngleAxisf(rollPitchYaw[1], Eigen::Vector3f::UnitY())
* Eigen::AngleAxisf(rollPitchYaw[0], Eigen::Vector3f::UnitX()))
.matrix();
case RotationConvention::nofROT: break;
default: throw std::runtime_error{ "Unhandled rotation convention" };
}
throw std::invalid_argument("Invalid orientation");
}
void rollPitchYawListToRotationMatrix(const std::vector<RollPitchYaw> &rpyList)
{
Eigen::IOFormat matrixFmt(4, 0, ", ", "\n", "[", "]", "[", "]");
for(const auto &rotation : rpyList)
{
std::cout << "Rotation Matrix from Roll-Pitch-Yaw angles (" << toString(rotation.convention)
<< "):" << std::endl;
const auto rotationMatrixFromRollPitchYaw =
rollPitchYawToRotationMatrix(rotation.rollPitchYaw, rotation.convention);
std::cout << rotationMatrixFromRollPitchYaw.format(matrixFmt) << std::endl;
}
}
// The following function converts Rotation Matrix to Roll-Pitch-Yaw angles in radians.
// Whether the axes are moving (intrinsic) or fixed (extrinsic) is defined by the rotation convention.
// The order of elements in the output array follow the convention, i.e., for ZYX and zyx, the first
// element of the array is rotation around z-axis, for XYZ and xyz, the first element is rotation
// around x-axis.
// Eigen only supports intrinsic Euler systems for simplicity. If you want to use extrinsic Euler systems,
// Eigen recoments just to use the equal intrinsic opposite order for axes and angles, i.e., axes (A,B,C)
// becomes (C,B,A), and angles (a,b,c) becomes (c,b,a).
Eigen::Array3f rotationMatrixToRollPitchYaw(
const Eigen::Matrix3f &rotationMatrix,
const RotationConvention &convention)
{
switch(convention)
{
case RotationConvention::zyxExtrinsic: return rotationMatrix.eulerAngles(0, 1, 2).reverse();
case RotationConvention::xyzIntrinsic: return rotationMatrix.eulerAngles(0, 1, 2);
case RotationConvention::xyzExtrinsic: return rotationMatrix.eulerAngles(2, 1, 0).reverse();
case RotationConvention::zyxIntrinsic: return rotationMatrix.eulerAngles(2, 1, 0);
case RotationConvention::nofROT: break;
default: throw std::runtime_error{ "Unhandled rotation convention" };
}
throw std::invalid_argument("Invalid rotation");
}
std::vector<RollPitchYaw> rotationMatrixToRollPitchYawList(const Eigen::Matrix3f &rotationMatrix)
{
const Eigen::IOFormat vectorFmt(4, 0, ", ", "", "", "", "[", "]");
std::vector<RollPitchYaw> rpyList;
for(size_t i = 0; i < nofRotationConventions; i++)
{
RotationConvention convention{ static_cast<RotationConvention>(i) };
std::cout << "Roll-Pitch-Yaw angles (" << toString(convention) << "):" << std::endl;
rpyList.push_back({ convention, rotationMatrixToRollPitchYaw(rotationMatrix, convention) });
std::cout << rpyList[i].rollPitchYaw.format(vectorFmt) << std::endl;
}
return rpyList;
}
Eigen::Vector3f rotationMatrixToRotationVector(const Eigen::Matrix3f &rotationMatrix)
{
const Eigen::AngleAxisf axisAngle(rotationMatrix);
return axisAngle.angle() * axisAngle.axis();
}
Eigen::Matrix3f rotationVectorToRotationMatrix(const Eigen::Vector3f &rotationVector)
{
Eigen::AngleAxisf axisAngle(rotationVector.norm(), rotationVector.normalized());
return axisAngle.toRotationMatrix();
}
void printHeader(const std::string &txt)
{
const std::string asterixLine = "****************************************************************";
std::cout << asterixLine << "\n* " << txt << std::endl << asterixLine << std::endl;
}
Eigen::Affine3f zividToEigen(const Zivid::Matrix4x4 &zividMatrix)
{
Eigen::Matrix4f eigenMatrix;
for(std::size_t row = 0; row < Zivid::Matrix4x4::rows; row++)
{
for(std::size_t column = 0; column < Zivid::Matrix4x4::cols; column++)
{
eigenMatrix(row, column) = zividMatrix(row, column);
}
}
Eigen::Affine3f eigenTransform{ eigenMatrix };
return eigenTransform;
}
Zivid::Matrix4x4 eigenToZivid(const Eigen::Affine3f &eigenTransform)
{
Eigen::Matrix4f eigenMatrix = eigenTransform.matrix();
Zivid::Matrix4x4 zividMatrix;
for(Eigen::Index row = 0; row < eigenMatrix.rows(); row++)
{
for(Eigen::Index column = 0; column < eigenMatrix.cols(); column++)
{
zividMatrix(row, column) = eigenMatrix(row, column);
}
}
return zividMatrix;
}
} // namespace
int main()
{
try
{
Zivid::Application zivid;
std::cout << std::setprecision(4);
Eigen::IOFormat matrixFormatRules(4, 0, ", ", "\n", "[", "]", "[", "]");
Eigen::IOFormat vectorFormatRules(4, 0, ", ", "", "", "", "[", "]");
printHeader("This example shows conversions to/from Transformation Matrix");
Zivid::Matrix4x4 transformationMatrixZivid(std::string(ZIVID_SAMPLE_DATA_DIR) + "/RobotTransform.yaml");
const Eigen::Affine3f transformationMatrix = zividToEigen(transformationMatrixZivid);
std::cout << transformationMatrix.matrix().format(matrixFormatRules) << std::endl;
// Extract Rotation Matrix and Translation Vector from Transformation Matrix
const Eigen::Matrix3f rotationMatrix = transformationMatrix.linear();
const Eigen::Vector3f translationVector = transformationMatrix.translation();
std::cout << "RotationMatrix:\n" << rotationMatrix.format(matrixFormatRules) << std::endl;
std::cout << "TranslationVector:\n" << translationVector.format(vectorFormatRules) << std::endl;
/*
* Convert from Rotation Matrix (Zivid) to other representations of orientation (Robot)
*/
printHeader("Convert from Zivid (Rotation Matrix) to Robot");
const Eigen::AngleAxisf axisAngle(rotationMatrix);
std::cout << "AxisAngle:\n"
<< axisAngle.axis().format(vectorFormatRules) << ", " << axisAngle.angle() << std::endl;
const Eigen::Vector3f rotationVector = rotationMatrixToRotationVector(rotationMatrix);
std::cout << "Rotation Vector:\n" << rotationVector.format(vectorFormatRules) << std::endl;
const Eigen::Quaternionf quaternion(rotationMatrix);
std::cout << "Quaternion:\n" << quaternion.coeffs().format(vectorFormatRules) << std::endl;
const auto rpyList = rotationMatrixToRollPitchYawList(rotationMatrix);
/*
* Convert to Rotation Matrix (Zivid) from other representations of orientation (Robot)
*/
printHeader("Convert from Robot to Zivid (Rotation Matrix)");
const Eigen::Matrix3f rotationMatrixFromAxisAngle = axisAngle.toRotationMatrix();
std::cout << "Rotation Matrix from Axis Angle:\n"
<< rotationMatrixFromAxisAngle.format(matrixFormatRules) << std::endl;
const Eigen::Matrix3f rotationMatrixFromRotationVector = rotationVectorToRotationMatrix(rotationVector);
std::cout << "Rotation Matrix from Rotation Vector:\n"
<< rotationMatrixFromRotationVector.format(matrixFormatRules) << std::endl;
const Eigen::Matrix3f rotationMatrixFromQuaternion = quaternion.toRotationMatrix();
std::cout << "Rotation Matrix from Quaternion:\n"
<< rotationMatrixFromQuaternion.format(matrixFormatRules) << std::endl;
rollPitchYawListToRotationMatrix(rpyList);
// Combine Rotation Matrix with Translation Vector to form Transformation Matrix
Eigen::Affine3f transformationMatrixFromQuaternion(rotationMatrixFromQuaternion);
transformationMatrixFromQuaternion.translation() = translationVector;
Zivid::Matrix4x4 transformationMatrixFromQuaternionZivid = eigenToZivid(transformationMatrixFromQuaternion);
transformationMatrixFromQuaternionZivid.save("RobotTransformOut.yaml");
}
catch(const std::exception &e)
{
std::cerr << "Error: " << e.what() << std::endl;
std::cout << "Press enter to exit." << std::endl;
std::cin.get();
return EXIT_FAILURE;
}
return EXIT_SUCCESS;
}
/*
Convert to/from Transformation Matrix (Rotation Matrix + Translation Vector).
Zivid primarily operate with a (4x4) transformation matrix. This example implements functions to convert to and from:
AxisAngle, Rotation Vector, Roll-Pitch-Yaw, Quaternion.
Note: the translation part of the transformation matrix is in millimeters (mm), since Zivid point clouds are in
millimeters. If your robot reports translation in meters, multiply it by 1000 before saving the pose.
The convenience functions from this example can be reused in applicable applications. The YAML files for this sample
can be found under the main instructions for Zivid samples.
For more information on pose conversions, check out this article:
https://support.zivid.com/en/latest/camera/reference-articles/pose-conversions.html
*/
using MathNet.Numerics.LinearAlgebra;
using MathNet.Numerics.LinearAlgebra.Double;
using System;
class Program
{
static void Main()
{
try
{
var zivid = new Zivid.NET.Application();
PrintHeader("This example shows conversions to/from Transformation Matrix");
var transformationMatrixZivid = new Zivid.NET.Matrix4x4(Environment.GetFolderPath(Environment.SpecialFolder.CommonApplicationData) + "/Zivid/RobotTransform.yaml");
var transformationMatrix = ZividToMathDotNet(transformationMatrixZivid);
Console.WriteLine(MatrixToString(transformationMatrix));
// Extract Rotation Matrix and Translation Vector from Transformation Matrix
var rotationMatrix = transformationMatrix.SubMatrix(0, 3, 0, 3);
var translationVector = transformationMatrix.SubMatrix(0, 3, 3, 1);
Console.WriteLine("RotationMatrix:\n" + MatrixToString(rotationMatrix));
Console.WriteLine("TranslationVector:\n" + MatrixToString(translationVector.Transpose()));
/*
* Convert from Rotation Matrix (Zivid) to other representations of orientation (Robot)
*/
PrintHeader("Convert from Zivid (Rotation Matrix) to Robot");
var axisAngle = RotationMatrixToAxisAngle(rotationMatrix);
Console.WriteLine("AxisAngle:\n" + MatrixToString(axisAngle.Axis.Transpose()) + ", " + String.Format(" {0:G4} ", axisAngle.Angle));
var rotationVector = axisAngle.Axis * axisAngle.Angle;
Console.WriteLine("Rotation Vector:\n" + MatrixToString(rotationVector.Transpose()));
var quaternion = RotationMatrixToQuaternion(rotationMatrix);
Console.WriteLine("Quaternion:\n" + MatrixToString(quaternion.Transpose()));
var rpyList = RotationMatrixToRollPitchYawList(rotationMatrix);
/*
* Convert to Rotation Matrix (Zivid) from other representations of orientation (Robot)
*/
PrintHeader("Convert from Robot to Zivid (Rotation matrix)");
var rotationMatrixFromAxisAngle = AxisAngleToRotationMatrix(axisAngle);
Console.WriteLine("Rotation Matrix from Axis Angle:\n" + MatrixToString(rotationMatrixFromAxisAngle));
var rotationMatrixFromRotationVector = RotationVectorToRotationMatrix(rotationVector);
Console.WriteLine("Rotation Matrix from Rotation Vector:\n" + MatrixToString(rotationMatrixFromRotationVector));
var rotationMatrixFromQuaternion = QuaternionToRotationMatrix(quaternion);
Console.WriteLine("Rotation Matrix from Quaternion:\n" + MatrixToString(rotationMatrixFromQuaternion));
RollPitchYawListToRotationMatrix(rpyList);
// Combine Rotation Matrix with Translation Vector to form Transformation Matrix
var transformationMatrixFromQuaternion = Matrix<double>.Build.Dense(4, 4);
transformationMatrixFromQuaternion.SetSubMatrix(0, 3, 0, 3, rotationMatrixFromQuaternion);
transformationMatrixFromQuaternion.SetSubMatrix(0, 3, 3, 1, translationVector);
var transformationMatrixFromQuaternionZivid = MathDotNetToZivid(transformationMatrixFromQuaternion);
transformationMatrixFromQuaternionZivid.Save("RobotTransformOut.yaml");
}
catch (Exception ex)
{
Console.WriteLine("Error: {0}", ex.ToString());
Environment.ExitCode = 1;
}
}
enum RotationConvention
{
zyxIntrinsic,
xyzExtrinsic,
xyzIntrinsic,
zyxExtrinsic
};
public class AxisAngle
{
public AxisAngle(Matrix<double> axis, double angle)
{
this.Axis = axis;
this.Angle = angle;
}
public Matrix<double> Axis { get; set; }
public double Angle { get; set; }
}
static Matrix<double> Skew(Matrix<double> vector)
// Assumes vector to be [3x1]
{
return CreateMatrix.DenseOfArray<double>(new double[,]
{
{ 0, -vector[2,0], vector[1,0] },
{ vector[2,0], 0, -vector[0,0] },
{ -vector[1,0], vector[0,0], 0 }
});
}
static AxisAngle RotationMatrixToAxisAngle(Matrix<double> rotationMatrix)
{
// See Rodrigues' formula or Skew-symmetric method
var skewSymmetricMatrix = (rotationMatrix - rotationMatrix.Transpose()) / 2;
Matrix<double> skewElements = CreateMatrix.DenseOfArray<double>(new double[,] { { skewSymmetricMatrix[2, 1] }, { skewSymmetricMatrix[0, 2] }, { skewSymmetricMatrix[1, 0] } });
var skewNorm = skewElements.Column(0, 0, 3).L2Norm();
Matrix<double> u = skewElements / skewNorm;
var theta = Math.Atan2(skewNorm, (rotationMatrix.Trace() - 1) / 2);
return new AxisAngle(u, theta);
}
static Matrix<double> AxisAngleToRotationMatrix(AxisAngle axisAngle)
{
//See Rodrigues' formula or Skew-symmetric method
var u = axisAngle.Axis;
var firstTerm = CreateMatrix.DenseIdentity<double>(3) * Math.Cos(axisAngle.Angle);
var secondTerm = u.Multiply(u.Transpose()) * (1 - Math.Cos(axisAngle.Angle));
var thirdTerm = Skew(u) * Math.Sin(axisAngle.Angle);
return firstTerm + secondTerm + thirdTerm;
}
static Matrix<double> RotationVectorToRotationMatrix(Matrix<double> rotationVector)
{
double theta = rotationVector.L2Norm();
return AxisAngleToRotationMatrix(new AxisAngle(rotationVector / theta, theta));
}
static Matrix<double> RotationMatrixToQuaternion(Matrix<double> rotationMatrix)
{
var qw = (Math.Sqrt(1 + rotationMatrix[0, 0] + rotationMatrix[1, 1] + rotationMatrix[2, 2])) / 2;
Matrix<double> quaternion = CreateMatrix.DenseOfArray<double>(new double[,]
{
{ (rotationMatrix[2,1] - rotationMatrix[1,2])/(4*qw) },
{ (rotationMatrix[0,2] - rotationMatrix[2,0])/(4*qw) },
{ (rotationMatrix[1,0] - rotationMatrix[0,1])/(4*qw) },
{ qw } // REAL PART
});
return quaternion;
}
static Matrix<double> QuaternionToRotationMatrix(Matrix<double> quaternion)
{
// Normalize quaternion
var nQ = quaternion / quaternion.L2Norm();
var firstTerm = CreateMatrix.DenseIdentity<double>(3);
var secondTerm = 2 * Skew(nQ.SubMatrix(0, 3, 0, 1)) * Skew(nQ.SubMatrix(0, 3, 0, 1));
var thirdTerm = 2 * nQ[3, 0] * Skew(nQ.SubMatrix(0, 3, 0, 1));
return firstTerm + secondTerm + thirdTerm;
}
static Matrix CreateRotationMatrix(string axis, double angle)
{
var matrix = DenseMatrix.CreateIdentity(3);
var cosAngle = Math.Cos(angle);
var sinAngle = Math.Sin(angle);
switch (axis)
{
case ("x"):
matrix[1, 1] = cosAngle;
matrix[2, 2] = cosAngle;
matrix[1, 2] = -sinAngle;
matrix[2, 1] = sinAngle;
break;
case ("y"):
matrix[0, 0] = cosAngle;
matrix[2, 2] = cosAngle;
matrix[0, 2] = sinAngle;
matrix[2, 0] = -sinAngle;
break;
case ("z"):
matrix[0, 0] = cosAngle;
matrix[1, 1] = cosAngle;
matrix[0, 1] = -sinAngle;
matrix[1, 0] = sinAngle;
break;
default: throw new Exception("Wrong axis; options are x, y, z.");
}
return matrix;
}
static Matrix CreateXRotation(double angle)
{
return CreateRotationMatrix("x", angle);
}
static Matrix CreateYRotation(double angle)
{
return CreateRotationMatrix("y", angle);
}
static Matrix CreateZRotation(double angle)
{
return CreateRotationMatrix("z", angle);
}
static Vector<double> RotationMatrixToRollPitchYaw(Matrix<double> rotationMatrix, RotationConvention convention)
{
double roll = -1;
double pitch = -1;
double yaw = -1;
switch (convention)
{
case RotationConvention.zyxExtrinsic:
case RotationConvention.xyzIntrinsic:
if (rotationMatrix[0, 2] < 1)
{
if (rotationMatrix[0, 2] > -1)
{
roll = Math.Atan2(-rotationMatrix[1, 2], rotationMatrix[2, 2]);
pitch = Math.Asin(rotationMatrix[0, 2]);
yaw = Math.Atan2(-rotationMatrix[0, 1], rotationMatrix[0, 0]);
}
else // R02 = −1
{
// Not a unique solution: yaw − roll = atan2(R01, R11)
roll = -Math.Atan2(rotationMatrix[1, 0], rotationMatrix[1, 1]);
pitch = -Math.PI / 2;
yaw = 0;
}
}
else // R02 = +1
{
// Not a unique solution: yaw + roll = atan2(R10, R11)
roll = Math.Atan2(rotationMatrix[1, 0], rotationMatrix[1, 1]);
pitch = Math.PI / 2;
yaw = 0;
}
break;
case RotationConvention.xyzExtrinsic:
case RotationConvention.zyxIntrinsic:
if (rotationMatrix[2, 0] < 1)
{
if (rotationMatrix[2, 0] > -1)
{
roll = Math.Atan2(rotationMatrix[1, 0], rotationMatrix[0, 0]);
pitch = Math.Asin(-rotationMatrix[2, 0]);
yaw = Math.Atan2(rotationMatrix[2, 1], rotationMatrix[2, 2]);
}
else // R20 = −1
{
// Not a unique solution: yaw − roll = atan2(−R12, R11)
roll = -Math.Atan2(rotationMatrix[1, 2], rotationMatrix[1, 1]);
pitch = Math.PI / 2;
yaw = 0;
}
}
else // R20 = +1
{
// Not a unique solution: yaw + roll = atan2(−R12, R11)
roll = Math.Atan2(rotationMatrix[1, 2], rotationMatrix[1, 1]);
pitch = -Math.PI / 2;
yaw = 0;
}
break;
}
switch (convention)
{
case RotationConvention.zyxExtrinsic:
case RotationConvention.xyzExtrinsic:
return CreateVector.DenseOfArray<double>(new double[] { yaw, pitch, roll });
case RotationConvention.xyzIntrinsic:
case RotationConvention.zyxIntrinsic:
return CreateVector.DenseOfArray<double>(new double[] { roll, pitch, yaw });
}
throw new ArgumentException("Invalid RotationConvention");
}
static Vector<double>[] RotationMatrixToRollPitchYawList(Matrix<double> rotationMatrix)
{
Vector<double>[] rpyList = new Vector<double>[Enum.GetValues(typeof(RotationConvention)).Length];
foreach (int i in Enum.GetValues(typeof(RotationConvention)))
{
RotationConvention convention = (RotationConvention)i;
Console.WriteLine("Roll-Pitch-Yaw angles (" + convention + "):");
rpyList[i] = RotationMatrixToRollPitchYaw(rotationMatrix, convention);
Console.WriteLine(VectorToString(rpyList[i]));
}
return rpyList;
}
static Matrix<double> RollPitchYawToRotationMatrix(Vector<double> rollPitchYaw, RotationConvention convention)
{
switch (convention)
{
case RotationConvention.xyzIntrinsic:
return CreateXRotation(rollPitchYaw[0]) * CreateYRotation(rollPitchYaw[1]) * CreateZRotation(rollPitchYaw[2]);
case RotationConvention.zyxIntrinsic:
return CreateZRotation(rollPitchYaw[0]) * CreateYRotation(rollPitchYaw[1]) * CreateXRotation(rollPitchYaw[2]);
case RotationConvention.zyxExtrinsic:
return CreateXRotation(rollPitchYaw[2]) * CreateYRotation(rollPitchYaw[1]) * CreateZRotation(rollPitchYaw[0]);
case RotationConvention.xyzExtrinsic:
return CreateZRotation(rollPitchYaw[2]) * CreateYRotation(rollPitchYaw[1]) * CreateXRotation(rollPitchYaw[0]);
default: throw new ArgumentException("Invalid RotationConvention");
}
}
static void RollPitchYawListToRotationMatrix(Vector<double>[] rpyList)
{
foreach (int i in Enum.GetValues(typeof(RotationConvention)))
{
RotationConvention convention = (RotationConvention)i;
Console.WriteLine("Rotation Matrix from Roll-Pitch-Yaw angles (" + convention + "):");
Console.WriteLine(MatrixToString(RollPitchYawToRotationMatrix(rpyList[i], convention)));
}
}
static Matrix<double> ZividToMathDotNet(Zivid.NET.Matrix4x4 zividMatrix)
{
return CreateMatrix.DenseOfArray(zividMatrix.ToArray()).ToDouble();
}
static Zivid.NET.Matrix4x4 MathDotNetToZivid(Matrix<double> mathNetMatrix)
{
return new Zivid.NET.Matrix4x4(mathNetMatrix.ToSingle().ToArray());
}
static void PrintHeader(string text)
{
string asterixLine = "****************************************************************";
Console.WriteLine(asterixLine + "\n* " + text + "\n" + asterixLine);
}
static string MatrixToString(Matrix<double> matrix)
{
string matrixString = "";
if (matrix.RowCount != 1)
{
matrixString = "[";
}
for (var i = 0; i < matrix.RowCount; i++)
{
matrixString += "[";
for (var j = 0; j < matrix.ColumnCount; j++)
{
matrixString += String.Format(" {0,9:G4} ", matrix[i, j]);
}
matrixString += "]\n ";
}
matrixString = matrixString.TrimEnd(' ');
matrixString = matrixString.TrimEnd('\n');
if (matrix.RowCount != 1)
{
matrixString += "]";
}
return matrixString;
}
static string VectorToString(Vector<double> vector)
{
string vectorString = "[";
for (var i = 0; i < vector.Count; i++)
{
vectorString += String.Format("{0,9:G4}", vector[i]);
}
vectorString += "]";
return vectorString;
}
}
"""
Convert to/from Transformation Matrix (Rotation Matrix + Translation Vector).
Zivid primarily operate with a (4x4) transformation matrix. This example shows how to use Eigen to convert to and from:
AxisAngle, Rotation Vector, Roll-Pitch-Yaw, Quaternion.
Note: the translation part of the transformation matrix is in millimeters (mm), since Zivid point clouds are in
millimeters. If your robot reports translation in meters, multiply it by 1000 before saving the pose.
The convenience functions from this example can be reused in applicable applications. The YAML files for this sample
can be found under the main instructions for Zivid samples.
For more information on pose conversions, check out this article:
https://support.zivid.com/en/latest/camera/reference-articles/pose-conversions.html
"""
import enum
from dataclasses import dataclass, field
from pathlib import Path
from typing import Dict, List, Optional
import numpy as np
import zivid
from scipy.spatial.transform import Rotation as R
from zividsamples.paths import get_sample_data_path
from zividsamples.save_load_matrix import assert_affine_matrix_and_save, load_and_assert_affine_matrix
class RotationConvention(enum.Enum):
"""Convenience enum class to list rotation conventions for Roll Pitch Yaw."""
ZYX_INTRINSIC = "ZYX"
XYZ_EXTRINSIC = "xyz"
XYZ_INTRINSIC = "XYZ"
ZYX_EXTRINSIC = "zyx"
class AxisAngle:
"""Convenience class to access rotation axis and angle."""
axis: np.ndarray
angle: np.floating
def __init__(self, axis: np.ndarray = np.array([0, 0, 1]), angle: Optional[float] = None):
"""Initialize class and its variables.
Can be initialized with a unit vector and an angle, or only a rotation vector.
Args:
axis: Rotation axis
angle: Rotation angle
Raises:
ValueError: If angle vector is provided, but vector is not a unit vector
"""
self.axis = axis
if angle is None:
self.angle = np.linalg.norm(axis)
self.axis = axis / self.angle
elif np.linalg.norm(axis) != 0:
raise ValueError("Angle provided, but vector is not unit vector")
else:
self.angle: np.floating = np.floating(angle)
def as_rotvec(self) -> np.ndarray:
"""Return rotation vector from axis angle.
Returns:
Rotation vector
"""
return self.axis * self.angle
def as_quaternion(self) -> np.ndarray:
"""Return quaternion from axis angle.
Returns:
Quaternion
"""
return R.from_rotvec(self.as_rotvec()).as_quat()
@dataclass
class Representations:
"""Class to hold various transformation representations."""
axis_angle: AxisAngle = AxisAngle()
rotation_vector: np.ndarray = field(default_factory=lambda: np.zeros(3))
quaternion: np.ndarray = field(default_factory=lambda: np.zeros(4))
rotations: list = field(default_factory=list)
def rotation_matrix_to_axis_angle(rotation_matrix: np.ndarray) -> AxisAngle:
"""Convert from Rotation Matrix --> Axis Angle.
Args:
rotation_matrix: A numpy array (3x3)
Returns:
AxisAngle
"""
rotation = R.from_matrix(rotation_matrix)
return AxisAngle(rotation.as_rotvec())
def rotation_matrix_to_rotation_vector(rotation_matrix: np.ndarray) -> np.ndarray:
"""Convert from Rotation Matrix --> Rotation Vector.
Args:
rotation_matrix: A numpy array (3x3)
Returns:
Rotation Vector
"""
rotation = R.from_matrix(rotation_matrix)
return rotation.as_rotvec()
def rotation_matrix_to_quaternion(rotation_matrix: np.ndarray) -> np.ndarray:
"""Convert from Rotation Matrix --> Quaternion.
Args:
rotation_matrix: A numpy array (3x3)
Returns:
Quaternion
"""
rotation = R.from_matrix(rotation_matrix)
return rotation.as_quat()
def rotation_matrix_to_roll_pitch_yaw(rotation_matrix: np.ndarray) -> List[Dict]:
"""Convert from Rotation Matrix --> Roll Pitch Yaw.
Args:
rotation_matrix: A numpy array (3x3)
Returns:
rpy_list: List of Roll Pitch Yaw angles in radians
"""
rpy_list = []
rotation = R.from_matrix(rotation_matrix)
for convention in RotationConvention:
roll_pitch_yaw = rotation.as_euler(convention.value)
print(f"Roll-Pitch-Yaw angles ({convention.name}):")
print(f"{roll_pitch_yaw}")
rpy_list.append({"convention": convention, "roll_pitch_yaw": roll_pitch_yaw})
return rpy_list
def axis_angle_to_rotation_matrix(axis_angle: AxisAngle) -> np.ndarray:
"""Convert from AxisAngle --> Rotation Matrix.
Args:
axis_angle: An AxisAngle object with axis and angle
Returns:
Rotation Matrix (3x3 numpy array)
"""
return R.from_quat(axis_angle.as_quaternion()).as_matrix()
def rotation_vector_to_rotation_matrix(rotvec: np.ndarray) -> np.ndarray:
"""Convert from Rotation Vector --> Rotation Matrix.
Args:
rotvec: A 3x1 numpy array
Returns:
Rotation Matrix (3x3 numpy array)
"""
return R.from_rotvec(rotvec).as_matrix()
def quaternion_to_rotation_matrix(quaternion: np.ndarray) -> np.ndarray:
"""Convert from Quaternion --> Rotation Matrix.
Args:
quaternion: A 4x1 numpy array
Returns:
Rotation Matrix (3x3 numpy array)
"""
return R.from_quat(quaternion).as_matrix()
def roll_pitch_yaw_to_rotation_matrix(rpy_list: List[Dict]) -> None:
"""Convert from Roll Pitch Yaw --> Rotation Matrix.
Args:
rpy_list: List of Roll Pitch Yaw angles in radians
"""
for rotation in rpy_list:
rotation_matrix = R.from_euler(rotation["convention"].value, rotation["roll_pitch_yaw"]).as_matrix()
print(f"Rotation Matrix from Roll-Pitch-Yaw angles ({rotation['convention'].name}):")
print(f"{rotation_matrix}")
def print_header(txt: str) -> None:
"""Print decorated header.
Args:
txt: Text to be printed in header
"""
terminal_width = 70
print()
print(f"{'*' * terminal_width}")
print(f"* {txt} {' ' * (terminal_width - len(txt) - 4)}*")
print(f"{'*' * terminal_width}")
def _main() -> None:
# Application class must be initialized before using other Zivid classes.
app = zivid.Application() # noqa: F841 # pylint: disable=unused-variable
np.set_printoptions(precision=4, suppress=True)
print_header("This example shows conversions to/from Transformation Matrix")
transformation_matrix = load_and_assert_affine_matrix(get_sample_data_path() / "RobotTransform.yaml")
print(f"Transformation Matrix:\n{transformation_matrix}")
# Extract Rotation Matrix and Translation Vector from Transformation Matrix
rotation_matrix = transformation_matrix[:3, :3]
translation_vector = transformation_matrix[:-1, -1]
print(f"Rotation Matrix:\n{rotation_matrix}")
print(f"Translation Vector:\n{translation_vector}")
###
# Convert from Zivid to Robot (Transformation Matrix --> any format)
###
print_header("Convert from Zivid (Rotation Matrix) to Robot")
axis_angle = rotation_matrix_to_axis_angle(rotation_matrix)
print(f"AxisAngle:\n{axis_angle.axis}, {axis_angle.angle:.4f}")
rotation_vector = rotation_matrix_to_rotation_vector(rotation_matrix)
print(f"Rotation Vector:\n{rotation_vector}")
quaternion = rotation_matrix_to_quaternion(rotation_matrix)
print(f"Quaternion:\n{quaternion}")
rpy_list = rotation_matrix_to_roll_pitch_yaw(rotation_matrix)
###
# Convert from Robot to Zivid (any format --> Rotation Matrix (part of Transformation Matrix))
###
print_header("Convert from Robot to Zivid (Rotation Matrix)")
rotation_matrix_from_axis_angle = axis_angle_to_rotation_matrix(axis_angle)
print(f"Rotation Matrix from Axis Angle:\n{rotation_matrix_from_axis_angle}")
rotation_matrix_from_rotation_vector = rotation_vector_to_rotation_matrix(rotation_vector)
print(f"Rotation Matrix from Rotation Vector:\n{rotation_matrix_from_rotation_vector}")
rotation_matrix_from_quaternion = quaternion_to_rotation_matrix(quaternion)
print(f"Rotation Matrix from Quaternion:\n{rotation_matrix_from_quaternion}")
roll_pitch_yaw_to_rotation_matrix(rpy_list)
# Replace rotation matrix in transformation matrix
transformation_matrix_from_quaternion = np.eye(4)
transformation_matrix_from_quaternion[:3, :3] = rotation_matrix_from_quaternion
transformation_matrix_from_quaternion[:-1, -1] = translation_vector
# Save transformation matrix which has passed through quaternion representation
assert_affine_matrix_and_save(
transformation_matrix_from_quaternion, Path(__file__).parent / "RobotTransformOut.yaml"
)
if __name__ == "__main__":
_main()
潜在的な解決策
ロボットコントローラからロボットの姿勢を Zivid のハンドアイキャリブレーション用の変換行列に変換する際には、正しい回転規則が使用されていることを確認してください。
修正済みのデータセットを使用して、手と目のキャリブレーションを再度実行してください。
手と目のキャリブレーション結果(変換、残差、投影)を確認します。
(手と目のキャリブレーション結果が良好な場合)タッチテストを実行します。
問題の再現手順(回転規則の誤り)
良質なデータセット
以下の画像に示すデータセットを用いて、手と目のキャリブレーションが正常に実行されました。
キャリブレーションの結果、以下の結果が得られました。
0.9991385 |
-0.00262377 |
0.04141687 |
-55.73573 |
0.001416378 |
0.9995739 |
0.02915465 |
-91.3017 |
-0.04147572 |
-0.02907087 |
0.9987165 |
129.1951 |
0 |
0 |
0 |
1 |
N(ポーズ) |
回転平均度(°) |
最大回転角度(°) |
平均転位(mm) |
最大トランスミッション値(mm) |
|---|---|---|---|---|
14 |
0.028 |
0.068 |
0.133 |
0.278 |
完全残余
ポーズ |
回転角度(°) |
翻訳(mm) |
|---|---|---|
1 |
0.030 |
0.149 |
2 |
0.039 |
0.278 |
3 |
0.021 |
0.065 |
4 |
0.037 |
0.138 |
5 |
0.013 |
0.272 |
6 |
0.014 |
0.079 |
7 |
0.018 |
0.133 |
8 |
0.013 |
0.075 |
9 |
0.038 |
0.088 |
10 |
0.015 |
0.061 |
11 |
0.026 |
0.179 |
12 |
0.036 |
0.065 |
13 |
0.068 |
0.209 |
14 |
0.023 |
0.066 |
手と目の協調性は、触覚テストによって検証された。
タッチテストは成功し、手と目のキャリブレーションが正しく正確であることが確認されました。
データセットが不良です(回転規則が間違っています)
回転規則の誤りをシミュレートするために、正常なデータセットの各ロボット姿勢に対して、以下の処理を行った。
変換行列は、外部固定 ZYX を仮定して、ロール・ピッチ・ヨー角に変換されました。
結果として得られたロール・ピッチ・ヨー角(数値は同じ角度)は変換行列形式に変換し直されたが、誤った規則(固有 zyx)が使用された。
翻訳ベクトルは変更されなかった。
キャリブレーションの結果、以下の結果が得られました。
-0.402 |
0.908 |
-0.117 |
134.552 |
-0.910 |
-0.411 |
-0.060 |
-440.257 |
-0.102 |
0.082 |
0.991 |
-706.041 |
0 |
0 |
0 |
1 |
N(ポーズ) |
回転平均度(°) |
最大回転角度(°) |
平均転位(mm) |
最大トランスミッション値(mm) |
|---|---|---|---|---|
14 |
10.764 |
20.647 |
99.307 |
176.708 |
完全残余
ポーズ |
回転角度(°) |
翻訳(mm) |
|---|---|---|
1 |
1.800 |
46.595 |
2 |
15.119 |
64.707 |
3 |
14.726 |
143.476 |
4 |
7.726 |
176.708 |
5 |
12.562 |
99.719 |
6 |
5.175 |
94.542 |
7 |
20.020 |
109.891 |
8 |
14.028 |
92.717 |
9 |
20.647 |
88.241 |
10 |
10.870 |
142.423 |
11 |
1.818 |
52.156 |
12 |
7.910 |
108.207 |
13 |
11.969 |
65.376 |
14 |
6.329 |
105.534 |
投影による検証は失敗しました。これは、ハンドアイキャリブレーションが正しくないこと、そしてタッチテストが大きく失敗することを示唆しています。
比較
以下の表では、手と目のキャリブレーション行列(並進値)と手と目のキャリブレーション残差の結果を比較しています。
データセット |
X(mm) |
Y(mm) |
Z(mm) |
|---|---|---|---|
良い |
-55.73573 |
-91.3017 |
129.1951 |
悪い(間違った腐敗の慣習) |
134.552 |
-440.257 |
-706.041 |
Δ(良い-悪い) |
-190.288 |
348.955 |
835.236 |
データセット |
N |
回転平均度(°) |
最大回転角度(°) |
平均転位(mm) |
最大トランスミッション値(mm) |
|---|---|---|---|---|---|
良い |
14 |
0.028 |
0.068 |
0.133 |
0.278 |
悪い(間違った腐敗の慣習) |
14 |
10.764 |
20.647 |
99.307 |
176.708 |
