Working Distance and Field-of-View

Zivid 카메라의 거리와 FOV 사이의 관계를 알아보려면 FOV and imaging distance calculator 를 확인하십시오.

Zivid 3

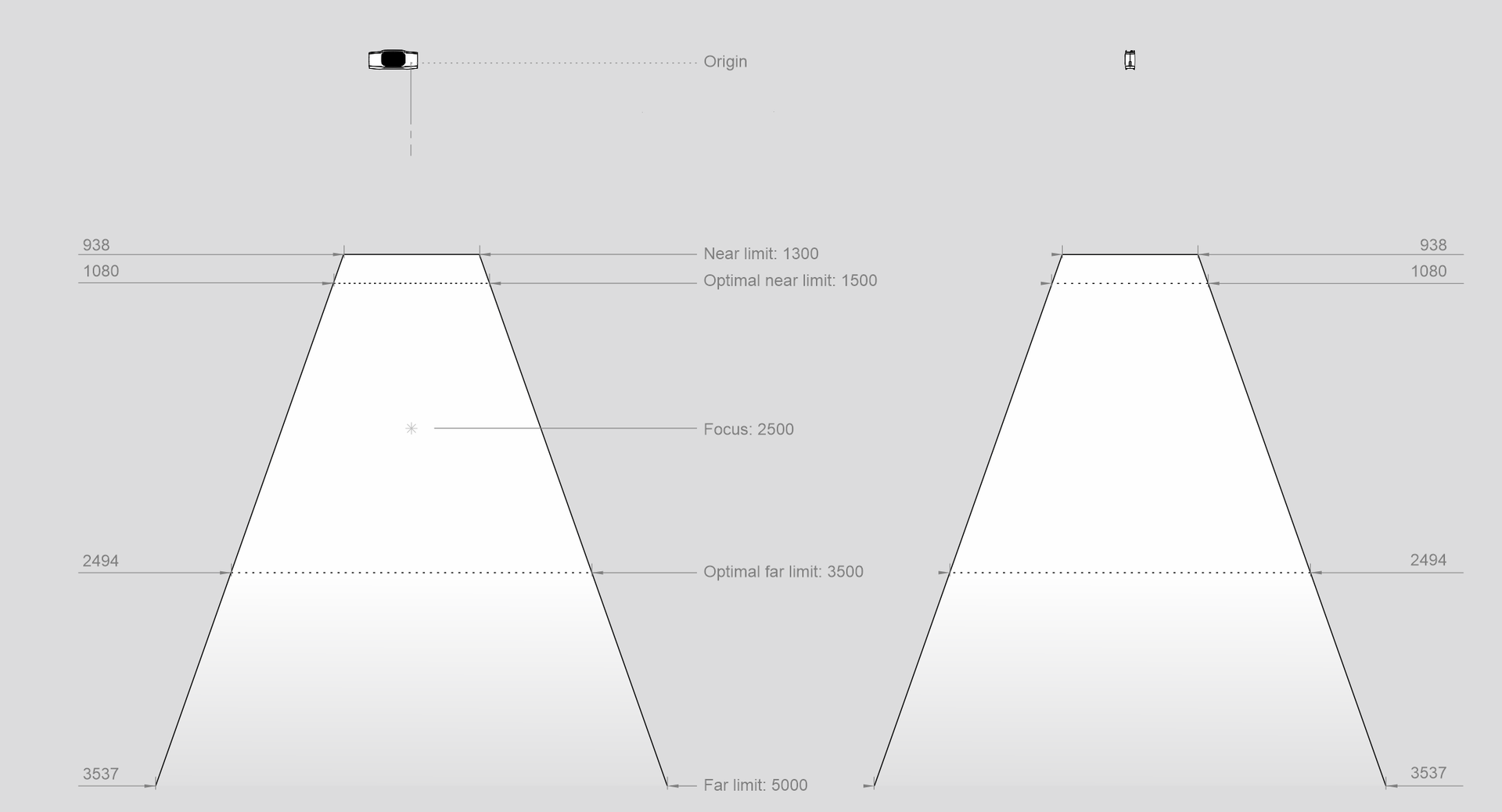

XL250

FOV CAD files

• zivid-three-xl250-fov.step

• zivid-three-xl250-fov.stl

CAD model information

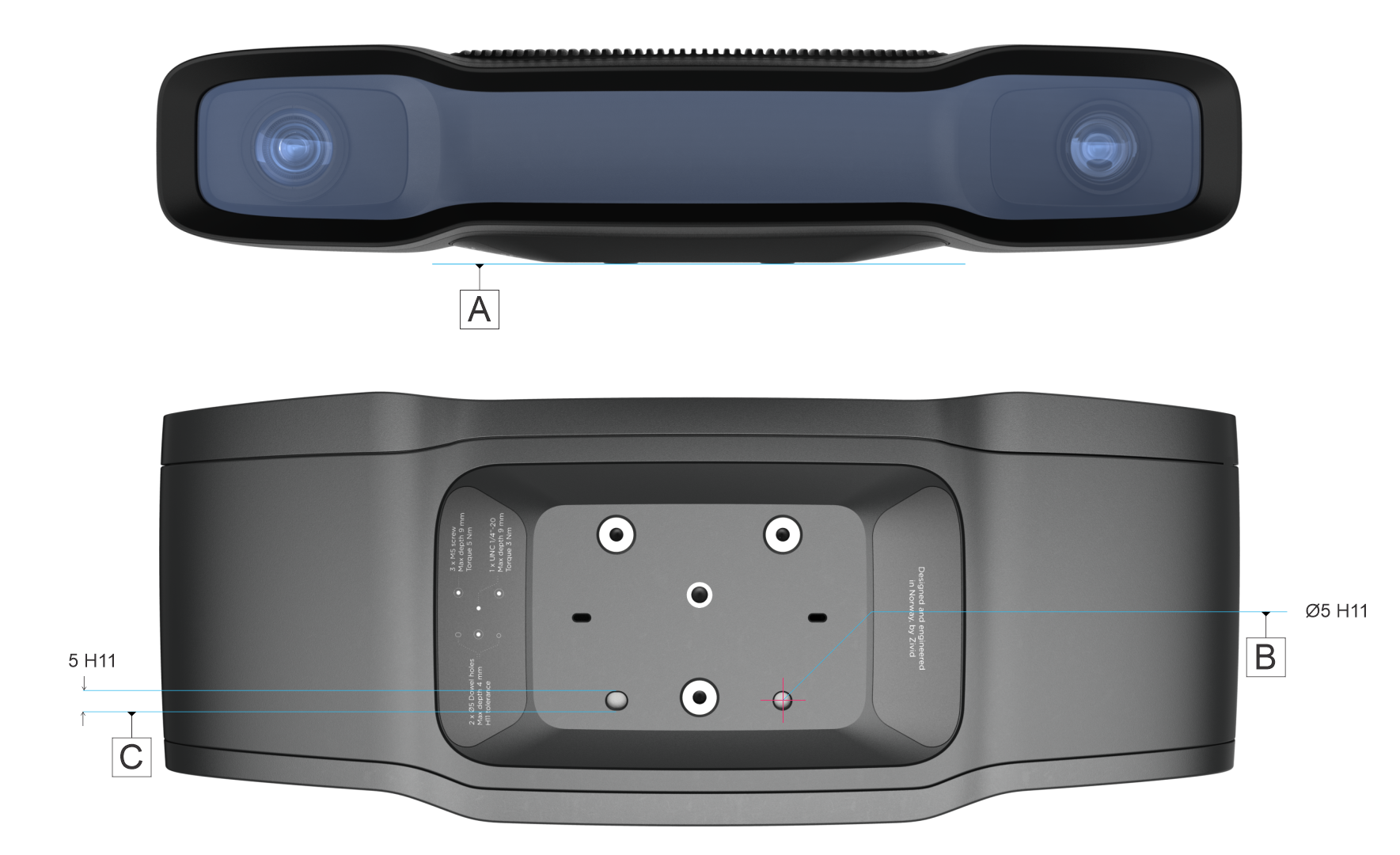

The datum reference of the Zivid 3 CAD models is at the center of the Ø5 positioning hole (B in the image below).

Optical center 은 데이텀 참조를 기준으로 합니다.

Zivid 2+

MR130/M130

FOV CAD files

• zivid-two-plus-mr130/m130-fov.step

• zivid-two-plus-mr130/m130-fov.stl

LR110/L110

FOV CAD files

• zivid-two-plus-lr110/l110-fov.step

• zivid-two-plus-lr110/l110-fov.stl

MR60/M60

FOV CAD files

• zivid-two-plus-mr60/m60-fov.step

• zivid-two-plus-mr60/m60-fov.stl

CAD model information

The datum reference of the Zivid 2+ CAD models is at the center of the Ø5 positioning hole (B in the image below).

Optical center 은 데이텀 참조를 기준으로 합니다.

Zivid 2

M70

FOV CAD files

• zivid-two-m70-fov.step

• zivid-two-m70-fov.stl

L100

FOV CAD files

• zivid-two-l100-fov.step

• zivid-two-l100-fov.stl

CAD model information

The datum reference of the Zivid 2 CAD models is at the center of the Ø5 positioning hole (B in the image below).

Optical center 은 데이텀 참조를 기준으로 합니다.

Zivid 카메라의 Mechanical Interface 에 대한 내용을 읽어보세요.

Version History

SDK	Changes
2.17.0	Added support for Zivid 3 XL250.
2.14.0	Added support for Zivid 2+ MR130, LR110, and MR60.
2.12.0	Zivid One+는 제품 생산이 종료되어 더 이상 지원되지 않습니다.
