Connectivity and Power Supply

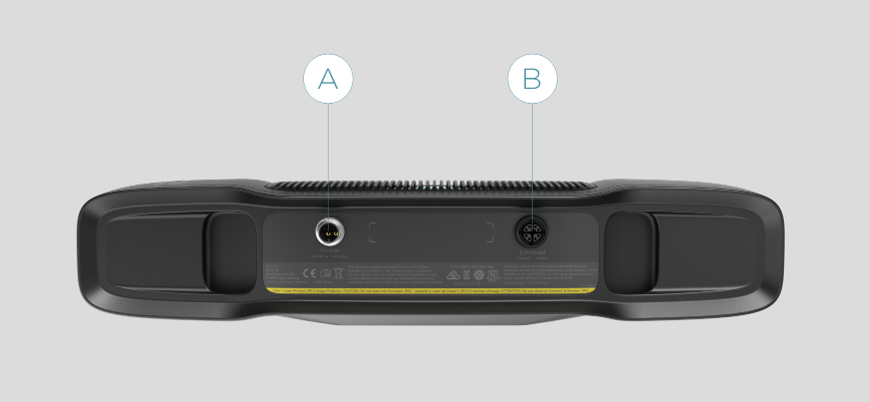

Connectors
M12-5: 전원 커넥터 24V, 5A DC
M12X: Ethernet 커넥터 CAT 6A
자세한 내용은 Zivid Approved Zivid Ethernet Cables 을 참조하십시오.
Factory reset button
Reset (power cycle):
짧게 누르거나 5초 미만 동안 누릅니다.
Reset to factory IP address:
전원 LED가 녹색으로 바뀔 때까지 5~10초 동안 누릅니다.
Revert to factory installed firmware:
전원 LED가 노란색으로 바뀔 때까지 10초 이상 누릅니다.
Reset (power cycle):
짧게 누르거나 5초 미만 동안 누릅니다.
Reset to factory IP address:
전원 LED가 녹색으로 바뀔 때까지 5~10초 동안 누릅니다.
Revert to factory installed firmware:
전원 LED가 노란색으로 바뀔 때까지 10초 이상 누릅니다.
Power supply interface
결합 커넥터(옵션): TE Connectivity AMP, 1838275-3(Digikey: A97645-ND)
팁
24V용과 GND용 두 핀을 모두 사용해야 합니다.
For more information about power supply and cables please see Power Supply and Cables.
Data cable
Zivid camera uses a dedicated ethernet cable for data transmission. See Zivid Approved Zivid Ethernet Cables for more information.
The table below provides the Zivid Ethernet cable pinout.
Connecting to the computer
먼저 전원 공급 장치를 “24V” 에 연결합니다.
이더넷 케이블을 카메라에 연결하고 컴퓨터에 연결합니다.
전원 공급 장치를 전원 콘센트에 꽂습니다.
참고
방출 및 내성 표준을 준수하려면 장치와 함께 제공된 AC/DC 어댑터를 사용하십시오.
Zivid 카메라는 물리적으로 전원을 차단하는 써미스터에 의해 역극성과 과열로부터 보호됩니다.
The Zivid camera uses Ethernet communication and needs 10 Gbps for best performance. Your computer may not have a port for 10 Gigabit Ethernet. In that case, you can connect to it using an adaptor for 10GBASE-T (10 Gbps copper Ethernet) to Thunderbolt 3. At a reduced performance you can also use 1000BASE-T and NBASE-T (1 Gbps, 2.5 Gbps, and 5 Gbps over copper) to USB adapters.
Recommended network cards and adapters
다음 하드웨어를 성공적으로 테스트했으며 권장합니다.
조심
USB 기반 네트워크 어댑터는 캡처 속도가 감소하고 가변적이어서 카메라를 사용할 때 가끔 오류가 발생할 수 있습니다. 최적의 성능을 위해 10Gb PCI Express 카드를 사용하는 것이 좋습니다.
경고
Zivid approved Ethernet cables 만 사용하십시오.
Network Topology
Zivid camera supports the following network topologies:
Direct connection |
Connection via switch |
---|---|
Network Configuration 도 찾을 수 있는 Software Installation 에 대해서 알아보십시오.
Version History
SDK |
Changes |
---|---|
2.4.0 |
Multiple Zivid 2 camera support added. |
