User Guide
To get started with a Zivid 3D color camera: unbox it, install the software, connect it, and capture your first point cloud in Zivid Studio. Follow the Quick Start Guide below for a fast overview of each step, or the Complete User Guide for the full instructions.
Quick Start Guide
Zivid 3
Unbox
Zivid 상자에서 다음을 찾을 수 있습니다:
선택 사항/주문 시:
- available in 5 m, 10 m, and 20 m.
- Power extension cable (M12-5 female, angled connector), available in 3 m.
- Ethernet (CAT-6A) cables (straight connector), available in 5 m, 10 m and 25 m.
- Ethernet (CAT-6A) extension cables (angled connector), available in 3 m.
- Mount of choice (Stationary Mount or On-Arm Mount).
모든 액세서리는 ordered separately 가능합니다.
Install
Requirements
Windows 10 / 11 or Ubuntu 20.04 / 22.04 / 24.04 / 26.04
최소 3GB RAM이 장착된 Intel 또는 Nvidia GPU
Software Installation 에 설명된 단계를 따르십시오.

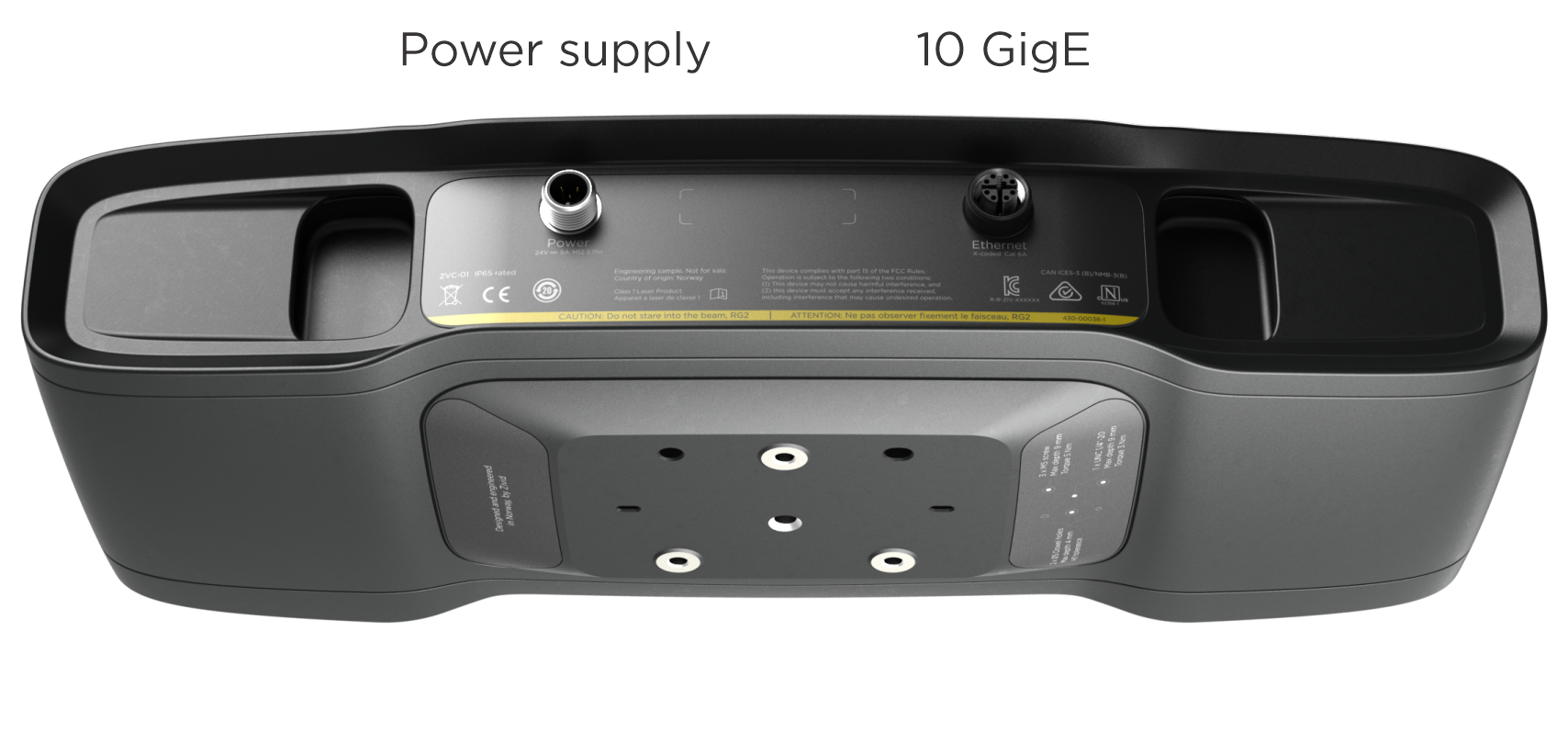

Connect
24V 전원 공급 장치
10 GigE 데이터 케이블
모든 연결이 단단히 조여졌는지 확인하십시오.
Configure your network to connect to the camera.
Capture
Zivid Studio provides an intuitive graphical user interface (GUI) so you can explore the features and capture high-definition 3D point clouds.
설정을 제어하고 다음 보기에서 선택합니다.
Point cloud
Color image
Depth map
SNR map
Normal map
Presets을 선택하고 Capture 를 클릭하여 캡처하세요!
Studio Guide 와 Camera 튜토리얼을 확인하십시오.
User Guide PDFs
Datasheet PDFs
Zivid 2+
Unbox
Zivid 상자에서 다음을 찾을 수 있습니다:
선택 사항/주문 시:
- available in 5 m, 10 m, and 20 m.
- Power extension cable (M12-5 male, angled connector), available in 3 m.
- Ethernet (CAT-6A) cables (straight connector), available in 5 m, 10 m and 25 m.
- Ethernet (CAT-6A) extension cables (angled connector), available in 3 m.
- Calibration Board of choice (300 x 300 mm or 125 x 150 mm).
- Mount of choice (Stationary Mount or On-Arm Mount).
모든 액세서리는 ordered separately 가능합니다.
Install
Requirements
Windows 10 / 11 or Ubuntu 20.04 / 22.04 / 24.04 / 26.04
최소 3GB RAM이 장착된 Intel 또는 Nvidia GPU
Software Installation 에 설명된 단계를 따르십시오.
Connect
24V 전원 공급 장치
10 GigE 데이터 케이블
모든 연결이 단단히 조여졌는지 확인하십시오.
Configure your network to connect to the camera.
Capture
Zivid Studio provides an intuitive graphical user interface (GUI) so you can explore the features and capture high-definition 3D point clouds.
설정을 제어하고 다음 보기에서 선택합니다.
Point cloud
Color image
Depth map
SNR map
Normal map
Presets을 선택하고 Capture 를 클릭하여 캡처하세요!
Studio Guide 와 Camera 튜토리얼을 확인하십시오.
User Guide PDFs
Datasheet PDFs
Zivid 2
Unbox
Zivid 상자에서 다음을 찾을 수 있습니다:
선택 사항/주문 시:
- available in 5 m, 10 m, and 20 m.
- Power extension cable (M12-5 male, angled connector), available in 3 m.
- Ethernet (CAT-6A) cables (straight connector), available in 5 m, 10 m and 25 m.
- Ethernet (CAT-6A) extension cables (angled connector), available in 3 m.
- Calibration Board of choice (300 x 300 mm or 125 x 150 mm).
- Mount of choice (Stationary Mount or On-Arm Mount).
모든 액세서리는 ordered separately 가능합니다.
Install
Requirements
Windows 10 / 11 or Ubuntu 20.04 / 22.04 / 24.04 / 26.04
최소 3GB RAM이 장착된 Intel 또는 Nvidia GPU
Software Installation 에 설명된 단계를 따르십시오.
Connect
24V 전원 공급 장치
10 GigE 데이터 케이블
모든 연결이 단단히 조여졌는지 확인하십시오.
Configure your network to connect to the camera.
Capture
Zivid Studio provides an intuitive graphical user interface (GUI) so you can explore the features and capture high-definition 3D point clouds.
설정을 제어하고 다음 보기에서 선택합니다.
Point cloud
Color image
Depth map
SNR map
Normal map
Presets을 선택하고 Capture 를 클릭하여 캡처하세요!
Studio Guide 와 Camera 튜토리얼을 확인하십시오.
User Guide PDFs
Datasheet PDFs
Complete User Guide
Version History
SDK |
Changes |
|---|---|
2.17.0 |
Zivid 3 XL250에 대한 지원이 추가되었습니다. |
2.14.0 |
Zivid 2+ MR130, LR110, MR60에 대한 지원이 추가되었습니다. |
2.12.0 |
Zivid One+는 서비스 종료로 더 이상 지원되지 않습니다. |
2.4.0 |
Multiple Zivid 2 camera support added. |
