Regulatory Information

The Zivid 2+ camera is compliant to international product compliance standards and regulations. Among these are:

Product Safety

  • International: IEC 62368-1, documented in CB test report and -certificate.

  • USA and Canada: UL 62368-1/CAN/CSA-C22.2 NO. 62368-1, documented in NRTL Description report and certificate.

  • Europe: EN 62368-1, documented in European group differences and national differences to CB test report, European Directive 2014/35/EU (LVD).

  • Australia: AS/NZS 3820, documented in Letter of Authorization.

The Zivid 2 camera is compliant to international product compliance standards and regulations. Among these are:

Product Safety

  • International: IEC 62368-1, documented in CB test report and -certificate.

  • USA and Canada: National Differences to CB test report according to UL 62368-1/CAN/CSA-C22.2 NO. 62368-1.

  • Europe: EN 62368-1, documented in European group differences and national differences to CB test report, European Directive 2014/35/EU (LVD).

  • Australia: National Differences to CB test report according to AS/NZS 62368.1.

Electromagnetic Compatibility (EMC)

  • International: CISPR 32 and CISPR 35, IEC 61000-3-2 and IEC 61000-3-3.

  • Europe: EN 55032 Class B, EN 55035, EN 61000-3-2 and EN 61000-3-3, European Directive 2014/30/EU (EMC).

  • USA: FCC15B Class B (see note 1).

  • Canada: ICES-003 (B) / NMB-003 (B) (see note 2).

  • South Korea: KS C 9832 and KS C 9832.

Photobiological Safety

  • International: IEC 62471-5, Classified acc. to risk group 2. Documented in CB test report and -certificate (see note 3).

Ingress protection

  • EN 60529 - The product is tested for compliance according to IP65. (See note 4).

Environmental Compliance

  • Europe: RoHS Directive 2011/65/EU with amd. (EU) 2015/863. REACH Regulation (EC) No 1907/2006.

Notes

  1. USA - EMC Class B

    FCC Compliance Statement:

    This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

    FCC Class B Interference Statement:

    이 장비는 테스트를 거쳐 FCC 규정 15조에 의거 클래스 B 디지털 장치에 대한 제한 사항을 준수하는 것으로 확인되었습니다. 이러한 제한은 주거용 설치에서 유해한 간섭으로부터 합리적인 보호를 제공하도록 설계되었습니다.

    이 장비는 무선 주파수 에너지를 생성, 사용 및 방출할 수 있으며 지침에 따라 설치 및 사용하지 않을 경우 무선 통신에 유해한 간섭을 일으킬 수 있습니다. 그러나 특정 설치에서 간섭이 발생하지 않는다는 보장은 없습니다.

    이 장비가 장비를 껐다가 켜서 확인할 수 있는 라디오 또는 텔레비전 수신에 유해한 간섭을 일으키는 경우 사용자는 다음 조치 중 하나 이상으로 간섭을 수정하는 것이 좋습니다.

    • 수신 안테나의 방향을 바꾸거나 재배치하십시오.

    • 장비와 수신기 사이의 간격을 늘립니다.

    • 수신기가 연결된 것과 다른 회로의 콘센트에 장비를 연결합니다.

    • 도움이 필요하면 대리점이나 숙련된 라디오/TV 기술자에게 문의하십시오.

    Do not modify the equipment:

    Changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. I.e.: Do not modify the equipment. This will:

    • Void the regulations listed above.

    • Might limit the intended use of the equipment.

    • Might cause hazardous situations.

    • Might lead to harmful interference with other equipment or radio communication.

    • Might cause damage to the system.

  2. Canada - EMC Class B

    This Class B digital apparatus complies with Canadian ICES-003.

    Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

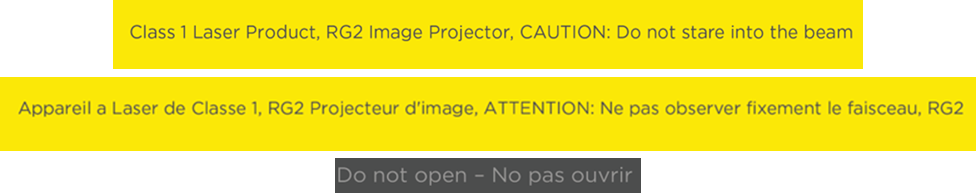

  3. Photobiological Safety, Risk Group 2

    As with any bright light source, do not stare into the beam, RG2 IEC 62471-5.

    ../../_images/risk-group-2-2024.png

  4. Ingress Protection

    The camera’s fan-duct is outside the IP65 classified enclosure (the fan itself is classified as minimum IP65).

  5. Mounting

    Read the mounting instructions before installation and follow these thoroughly. Use the intended mounting accessories and hardware. Mounting the camera incorrectly could result in hazardous situations, malfunctions, or damage to the camera.

  6. Ambient temperature

    Do not use the product in areas where ambient temperature exceeds the specified range given in the datasheet. This could cause overheating, result in hazardous situations, malfunctions or damage to the camera.

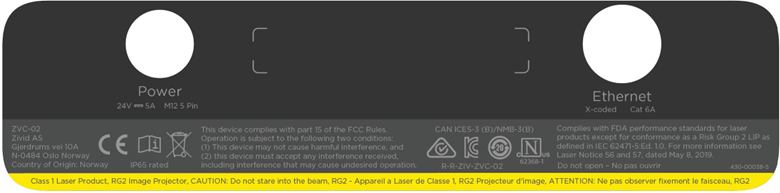

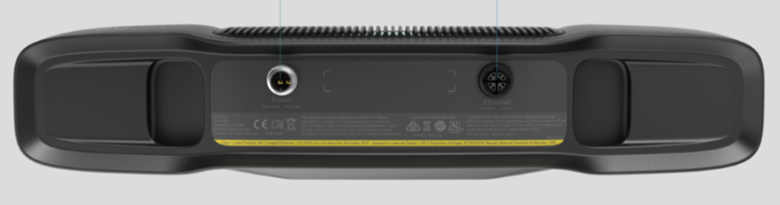

  7. Explanation of symbols marked on the product

    Symbol

    Explanation

    lines-fig

    The product must be supplied from a DC power source.

    can-fig

    After the product’s end of life, it must be handled according to any national laws and regulations for electronic waste. Do not discard the product as unsorted waste.

    man-fig

    Read the user manual.

  8. Compliance documentation

    Please contact Zivid for access to declarations of conformity or other publicly available compliance documents.

Version History

SDK

Changes

2.12.0

Zivid One+는 제품 수명이 종료되어 더 이상 지원되지 않습니다.
