Status LED Indication
Zivid 2+ camera contains three status indication LEDs:
Power
Ethernet Link
Ethernet Activity

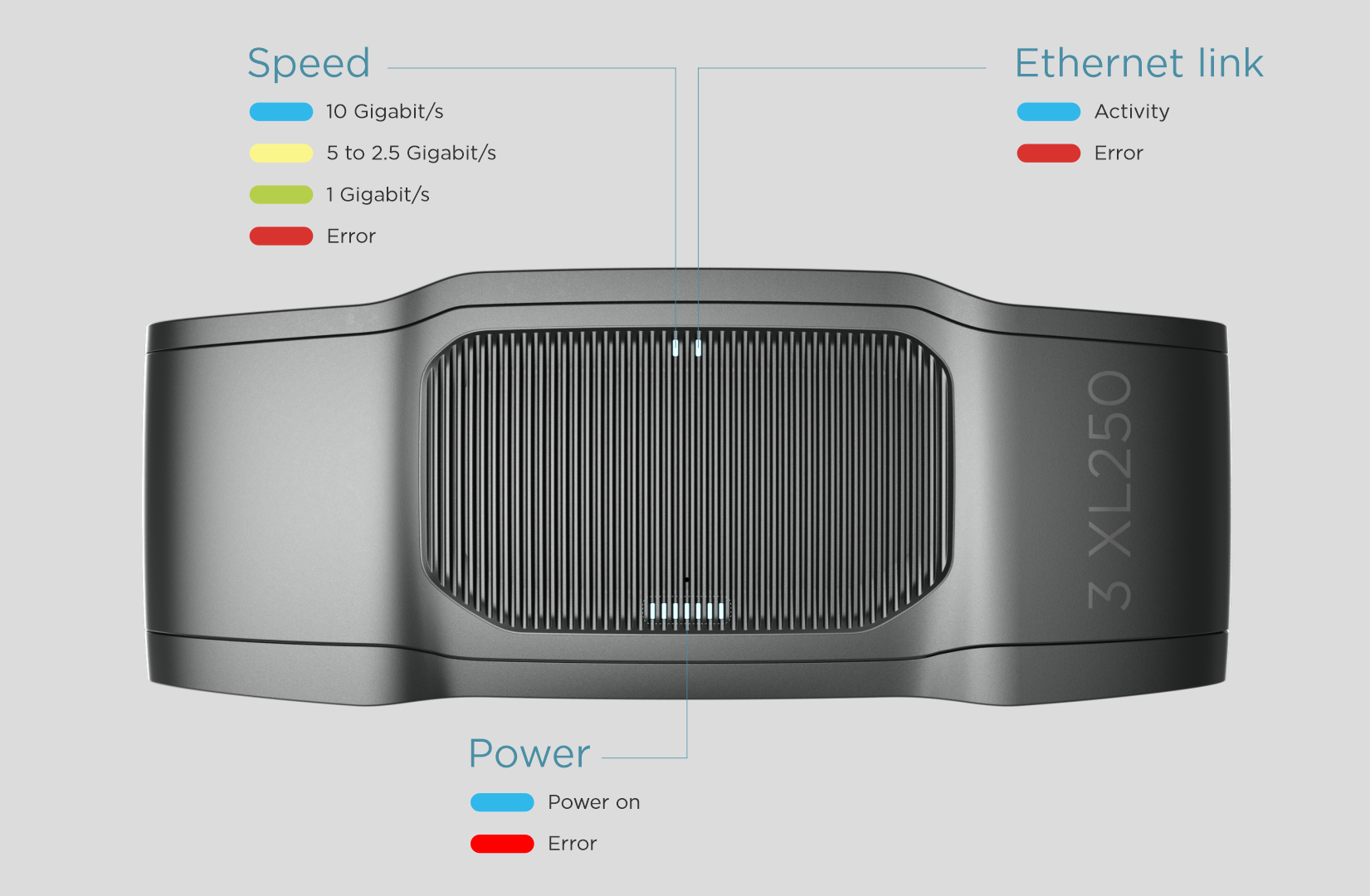

The following image describes what the LED colors indicate.
![]()
Note
The Speed indication LED shows the link speed between the camera and the network device it is connected to, not the image transfer speed between the camera and the PC. Suppose the camera is connected to a 10G network switch that is connected to a 1G network card. The LED will indicate a speed of 10G even if the end-to-end link speed is limited to 1G.
Zivid 2 camera contains three status indication LEDs:
Power
Ethernet Link
Ethernet Activity
The following image describes what the LED colors indicate.
![]()
Note
The Speed indication LED shows the link speed between the camera and the network device it is connected to, not the image transfer speed between the camera and the PC. Suppose the camera is connected to a 10G network switch that is connected to a 1G network card. The LED will indicate a speed of 10G even if the end-to-end link speed is limited to 1G.
Zivid One+ camera contains one status indication LED with four different indication modes:
Color
Indication
Status
Blue
Rapid blinking
No USB connection
Blue
Continuously on with short off period
USB is enumerated and the USB device drivers on the PC are installed and working
White
Continuously on with short off period
Zivid Software is communicating with the projector and “heartbeats” are being received
Red
Blinking
Error [1]
Note
Older Zivid One+ cameras have a thick black rubber gasket so indication LEDs are not visible.
