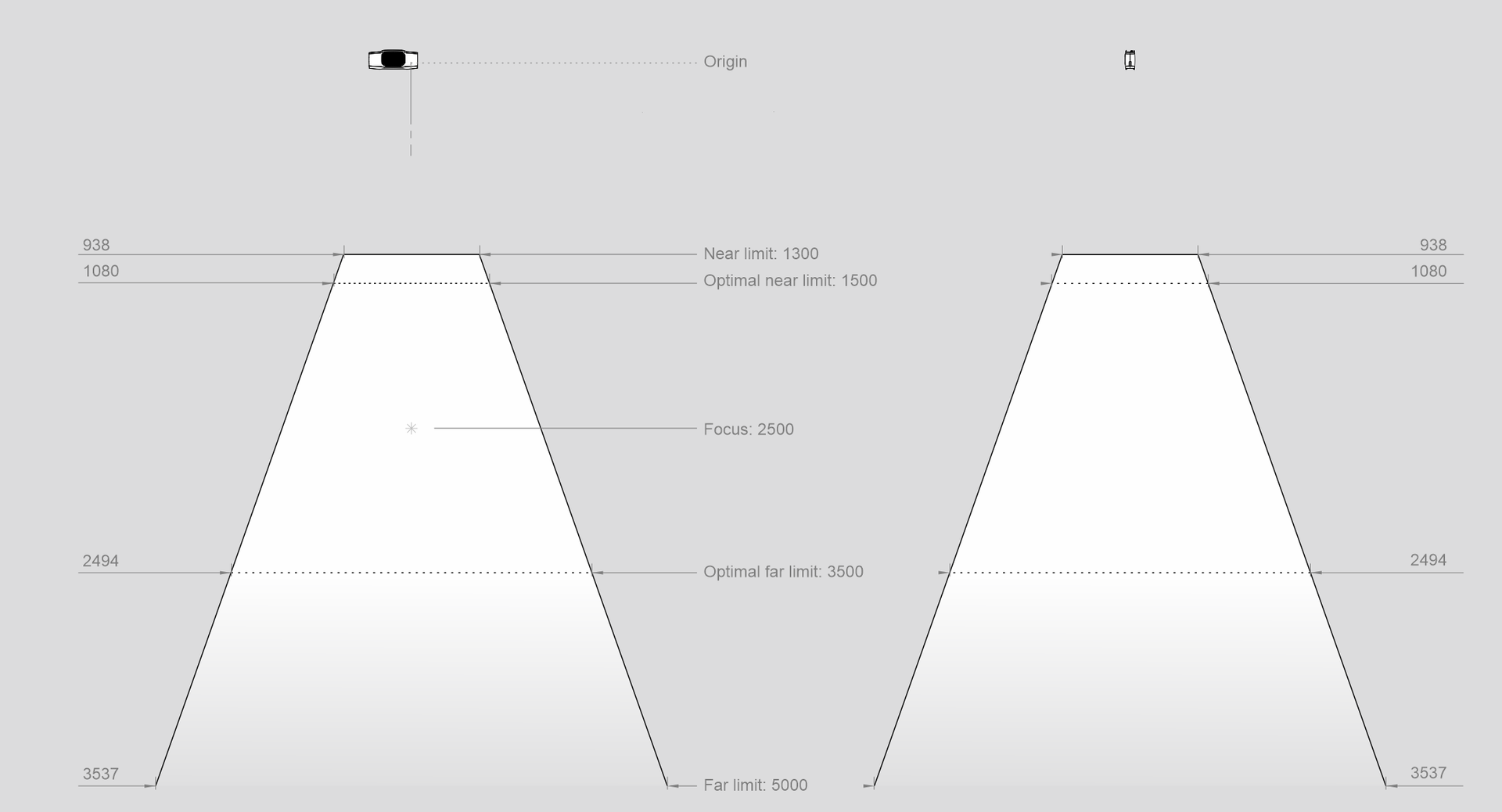

Working Distance and Field-of-View
Check out our FOV and imaging distance calculator to find the relation between distances and FOV for the Zivid cameras.
FOV CAD files
CAD model information

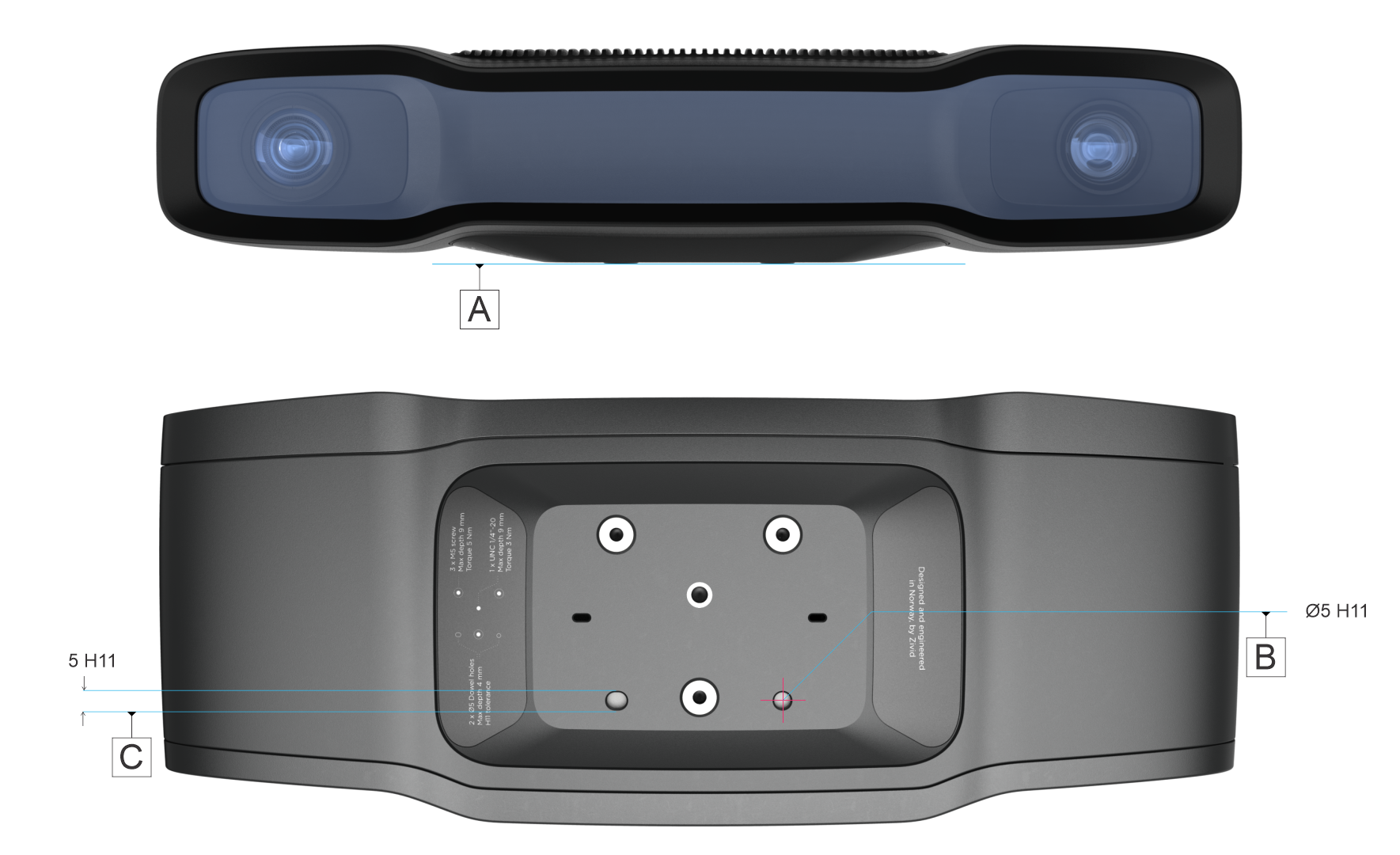

The datum reference of the Zivid 3 CAD models is at the center of the Ø5 positioning hole (B in the image below).
The Optical center is found relative to the datum reference.
CAD model information
The datum reference of the Zivid 2+ CAD models is at the center of the Ø5 positioning hole (B in the image below).
The Optical center is found relative to the datum reference.
FOV CAD files
FOV CAD files
CAD model information
The datum reference of the Zivid 2 CAD models is at the center of the Ø5 positioning hole (B in the image below).
The Optical center is found relative to the datum reference.
Continue reading about the Mechanical Interface of Zivid cameras.
Version History
SDK |
Changes |
|---|---|
2.17.0 |
Added support for Zivid 3 XL250. |
2.14.0 |
Added support for Zivid 2+ MR130, LR110, and MR60. |
2.12.0 |
Zivid One+ has reached its End-of-Life and is no longer supported. |
