Connectivity and Power Supply

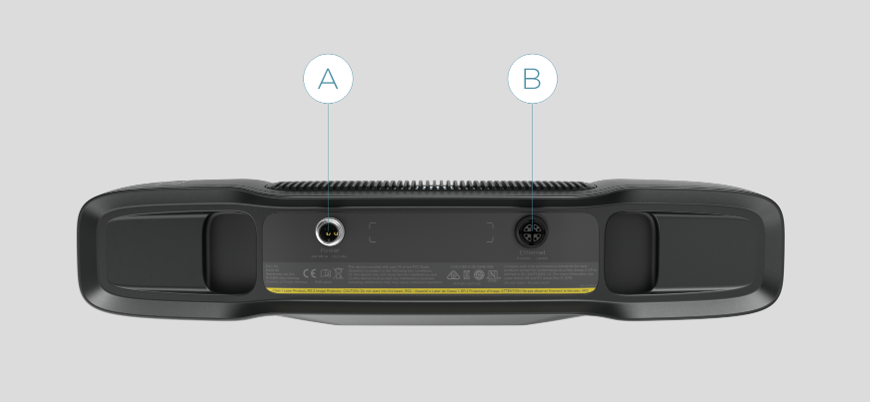

Connectors

../../_images/zivid-two-backside-with-reset-button.png
  1. M12-5: Power Connector 24V, 5A DC

  2. M12X: Ethernet Connector CAT 6A

Check Zivid Approved Zivid Ethernet Cables for more information.

Factory reset button

Reset (power cycle):

Intermittent press or hold for less than 5 seconds.

Reset to factory IP address:

Hold for 5 to 10 seconds until the Power LED turns green

Revert to factory installed firmware:

Hold for more than 10 seconds until the Power LED turns yellow.

Reset (power cycle):

Intermittent press or hold for less than 5 seconds.

Reset to factory IP address:

Hold for 5 to 10 seconds until the Power LED turns green

Revert to factory installed firmware:

Hold for more than 10 seconds until the Power LED turns yellow.

Power supply interface

../../_images/power_supply_interface_pinout.png

Optional mating connector: TE Connectivity AMP, 1838275-3 (Digikey: A97645-ND)

Tip

It is required to use both pins for 24V and for GND.

For more information about power supply and cables please see Power Supply and Cables.

Data cable

Zivid camera uses a dedicated ethernet cable for data transmission. See Zivid Approved Zivid Ethernet Cables for more information.

The table below provides the Zivid Ethernet cable pinout.

../../_images/data_cable_m12x8_rj45_interface.png

Connecting to the computer

  1. Plug the power supply first into the “24V”.

  2. Plug the Ethernet cable into the camera and connect it to your computer.

  3. Plug the power supply into a power outlet.

Note

On disconnect, follow the procedure in reverse, disconnect mains power first.
Ensure that all connections are screwed in tightly. The coupling nut of the M12 screw connectors can in some cases be hard do screw in. However, when installed correctly they provide a robust and reliable connection.
Check System Requirements for performance considerations and review performance by observing the status Indication LEDs.

Use the AC/DC adapter supplied with the unit to ensure compliance with emission and immunity standards.

The Zivid camera is protected against reverse polarity and against overheating by a thermistor that physically removes the power.

The Zivid camera uses Ethernet communication and needs 10 Gbps for best performance. Your computer may not have a port for 10 Gigabit Ethernet. In that case, you can connect to it using an adaptor for 10GBASE-T (10 Gbps copper Ethernet) to Thunderbolt 3. At a reduced performance you can also use 1000BASE-T and NBASE-T (1 Gbps, 2.5 Gbps, and 5 Gbps over copper) to USB adapters.

Recommended network cards and adapters

We have successfully tested and recommend the following hardware:

Caution

USB-based network adapters have reduced and more variable capture speed, and can occasionally give errors when using the camera. Our recommendation is to use 10Gb PCI Express cards for optimal performance.

Warning

Use only Zivid approved Ethernet cables.

Network Topology

Zivid camera supports the following network topologies:

Direct connection

Connection via switch

../../_images/zivid-two-pc-direct-connection.png ../../_images/zivid-two-pc-connection-via-switch.png

Continue to Software Installation where you will also find Network Configuration.

Version History

SDK

Changes

2.12.0

Zivid One+ has reached its End-of-Life and is no longer supported.

2.4.0

Multiple Zivid 2 camera support added.
