Mechanical Interface

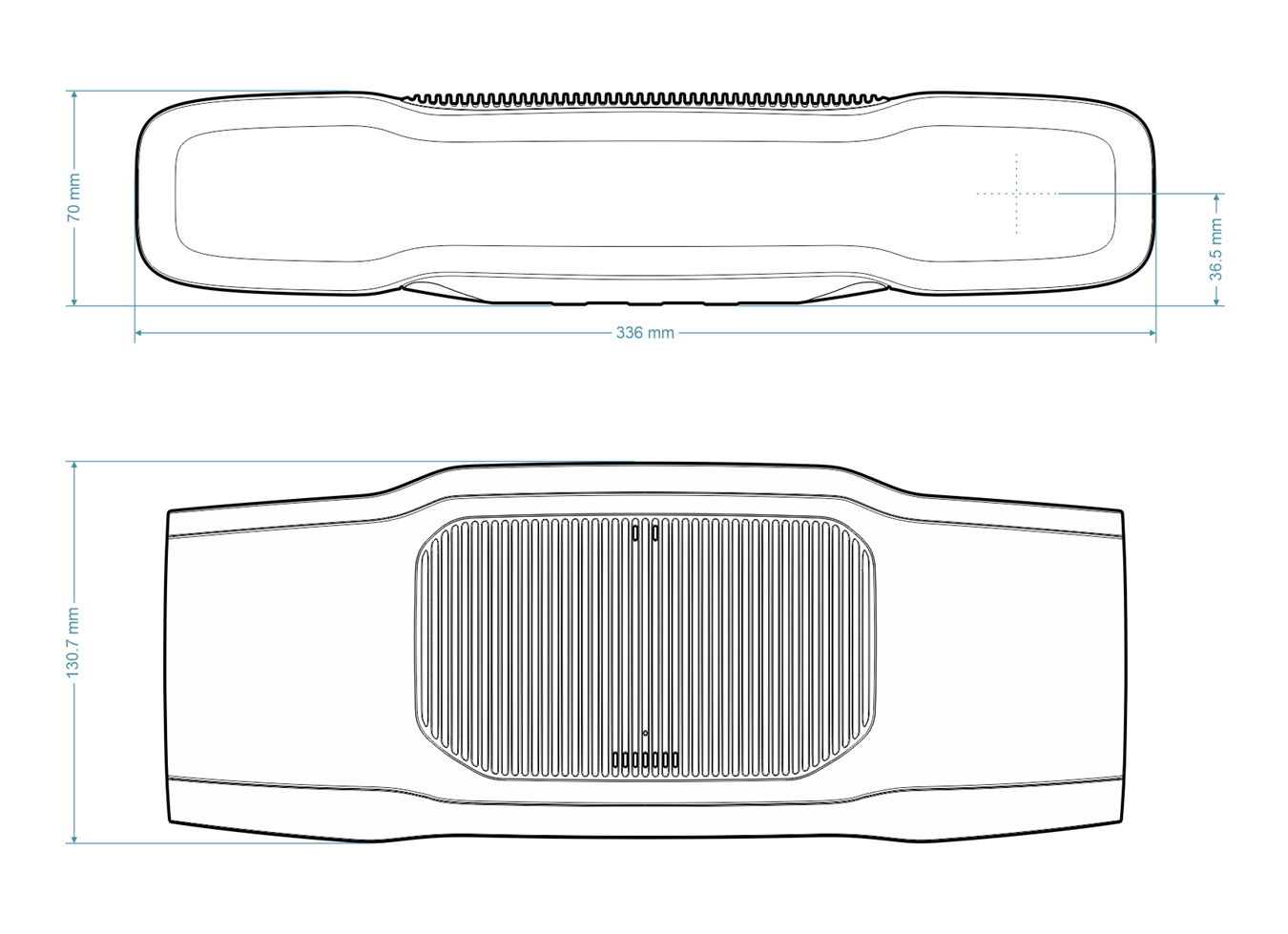

Dimensions

../../../_images/zivid-two-plus-dimensions.png
../../../_images/zivid-two-dimensions.png

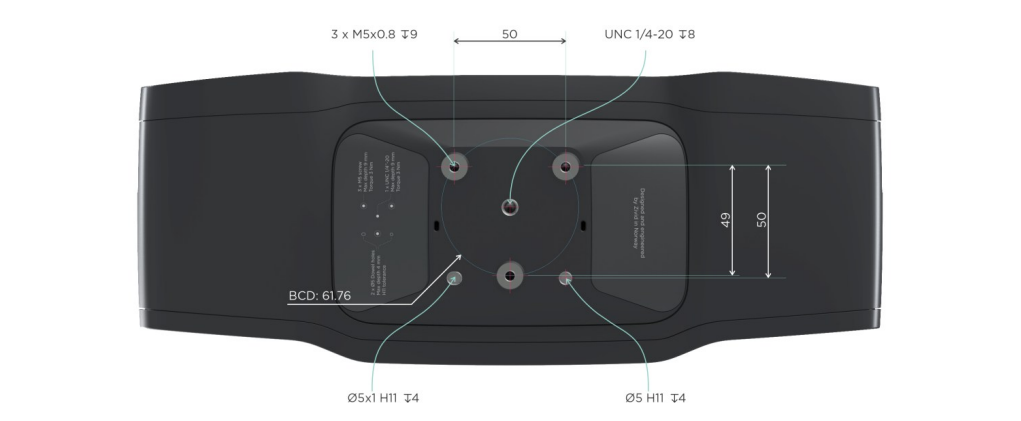

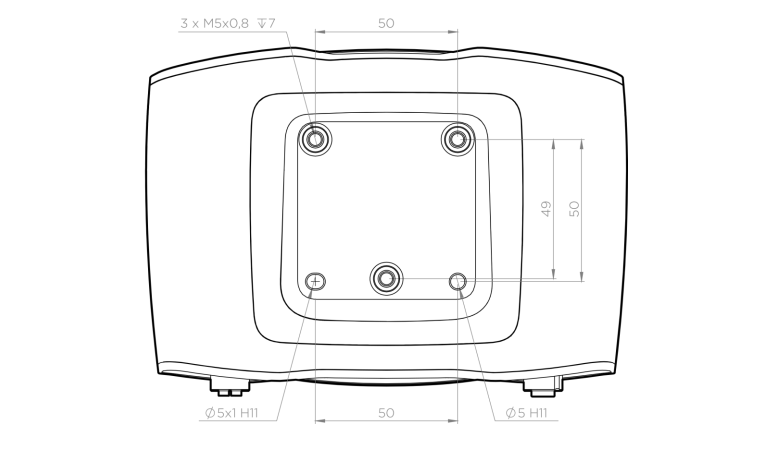

Mounting Specifications

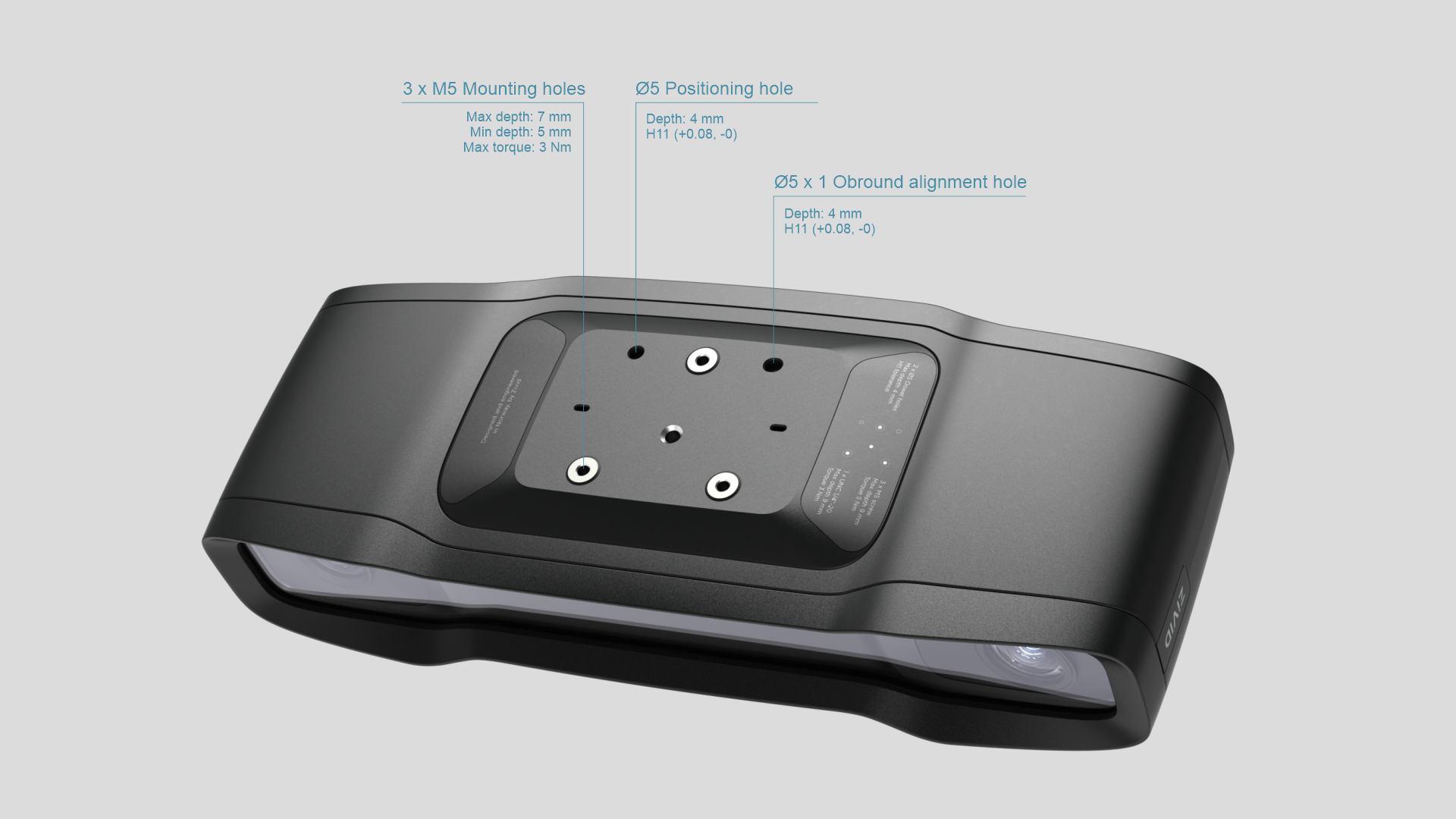

This Zivid camera has three M5 mounting holes, one Ø5 positioning hole, and one Ø5x1 obround alignment hole. We recommend using DIN 912 / ISO 4762 Hexagon or ISO 14579 Hexalobular socket head cap screws in stainless steel (A2 or A4). To ensure not damaging the threads, we recommend not exceeding the specified maximum torque value when fastening the screws.

../../../_images/zivid-two-mounting.png

Flatness of Mounting Surface

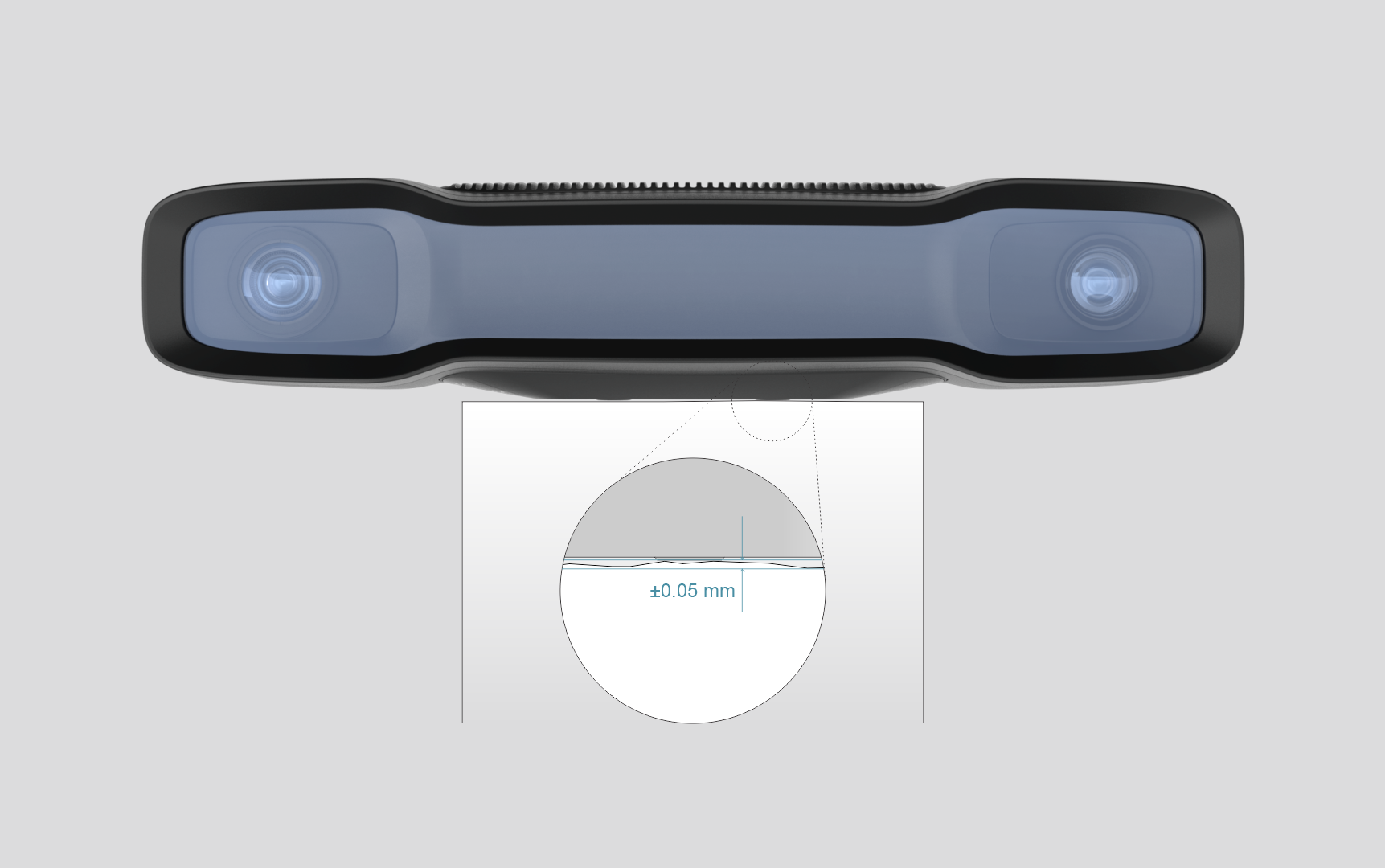

For optimal performance we recommend a mounting surface flatness of ±0,05 mm or better. Mounting the camera to an uneven surface can in some cases affect the calibration.

We recommend using one of the Zivid Camera Mounts to ensure problem free installation of the camera.

../../../_images/zivid_two_flatness_of_mounting_surface.png

Continue reading to find out more about Mounting options for Zivid cameras.
