Stitching

Introduction

This article is an in-depth tutorial on how to stitch Zivid’s unorganized point clouds.

To understand the real problem, let us first look briefly at the application. Like any camera or the human eye, the Zivid camera cannot see through or around objects, it can only observe one side at a time. Therefore, to obtain a full 3D model of an object, you must capture it from multiple viewpoints by rotating the object or repositioning the camera.

The problem

Point clouds returned by the Zivid SDK are expressed in the camera coordinate system, where the origin is located inside the camera itself. When capturing from multiple viewpoints, each point cloud is defined relative to the coordinate system of the camera at the time of capture. If you simply combine these point clouds without transformation, they will not align spatially, they will appear disjointed and disconnected in 3D space. In other words, the point clouds do not share a common coordinate system that is attached to the object being scanned.

The Solution

To merge multiple point clouds into a single, spatially aligned 3D representation of the object, you need to:

1. Transform all point clouds into a common coordinate system attached to the object being scanned.

2. Refine alignment to compensate for any noise or small errors in pose estimation.

The transformation from each camera coordinate system to the common coordinate system can come from various sources: robot kinematics, motion tracking systems, or manual measurements. However, these transformations are rarely perfect and usually introduce small alignment errors. To correct these errors, you can use Zivid::Experimental::Toolbox::localPointCloudRegistration(). This API tool refines the alignment between two overlapping point clouds by computing a transformation matrix that best registers one point cloud to another.

Before starting to stitch point clouds, it is important to make sure that the point clouds are captured with enough overlapping feature points. Also we must discard data that can lead to incorrect stitching, such as points that are too far away from the camera or points that are not part of the object/scene we are stitching. We recommend using the Zivid’s Region of Interest before stitching. For the captures where the camera is stationary it is possible to define the region of interest once and use it for all captures. While using a robot arm to move the camera around the object, it is likely necessary to configure a different region of interest for each point cloud.

Note

All the point clouds in Zivid’s Sample Data that are going to be stitched are already ROI filtered.

Stitching point clouds without pre-alignment

This section demonstrates stitching point clouds without pre-alignment. The key requirement is that the relative movement between the object and the camera is small enough from one point cloud to another to ensure significant overlap between captures. In this example, the object remains stationary while the camera is slightly moved between captures, and Zivid::Experimental::Toolbox::localPointCloudRegistration() is used to align the point clouds. We begin with a simple example that stitches two point clouds without prior pose information, followed by a more advanced case using a rotary table to scan the entire object.

Stitching two point clouds

This simple example demonstrates how to stitch two point clouds without pre-alignment. To stitch using this method, we need to:

1. Load two ZDF files.

2. Convert the point clouds to unorganized format.

3. Apply voxel downsampling.

4. Estimate the transformation for alignment.

5. Stitch the clouds together.

6. Downsample the final stitched result.

Here is how to load the ZDF files and convert the point clouds to unorganized format using Zivid::PointCloud::toUnorganizedPointCloud(). The unorganized point clouds are joined in one Zivid::UnorganizedPointCloud object using Zivid::UnorganizedPointCloud::extend(), and displayed.

C++

source

// Ensure the dataset is extracted to the correct location depending on the operating system:
//   - Windows:   %ProgramData%/Zivid/StitchingPointClouds/
//   - Linux:     /usr/share/Zivid/data/StitchingPointClouds/
//  StitchingPointClouds/
//      └── BlueObject/
std::cout << "Reading point clouds from ZDF files" << std::endl;
const auto directory = std::filesystem::path(ZIVID_SAMPLE_DATA_DIR) / "StitchingPointClouds" / "BlueObject";

if(!std::filesystem::exists(directory))
{
    std::ostringstream oss;
    oss << "Missing dataset folders.\n"
        << "Make sure 'StitchingPointClouds/BlueObject/' exist at " << ZIVID_SAMPLE_DATA_DIR << ".\n\n"
        << "You can download the dataset (StitchingPointClouds.zip) from:\n"
        << "https://support.zivid.com/en/latest/api-reference/samples/sample-data.html";

    throw std::runtime_error(oss.str());
}

const auto frame1 = Zivid::Frame((directory / "BlueObject.zdf").string());
const auto frame2 = Zivid::Frame((directory / "BlueObjectSlightlyMoved.zdf").string());

std::cout << "Converting organized point clouds to unorganized point clouds and voxel downsampling"
          << std::endl;
const auto unorganizedPointCloud1 = frame1.pointCloud().toUnorganizedPointCloud();
const auto unorganizedPointCloud2 = frame2.pointCloud().toUnorganizedPointCloud();

std::cout << "Displaying point clouds before stitching" << std::endl;
Zivid::UnorganizedPointCloud unorganizedNotStitchedPointCloud;
unorganizedNotStitchedPointCloud.extend(unorganizedPointCloud1);
unorganizedNotStitchedPointCloud.extend(unorganizedPointCloud2);
const auto unorganizedNotStitchedPointCloudOpen3D = copyToOpen3D(unorganizedNotStitchedPointCloud);
visualizePointCloud(unorganizedNotStitchedPointCloudOpen3D);

Python

source

# Ensure the dataset is extracted to the correct location depending on the operating system:
#   • Windows:   %ProgramData%\\Zivid\\StitchingPointClouds\\
#   • Linux:     /usr/share/Zivid/data/StitchingPointClouds/
# The folder must contain:
#   StitchingPointClouds/
#     └── BlueObject/
print("Reading point clouds from files")
directory = get_sample_data_path() / "StitchingPointClouds" / "BlueObject"

if not directory.exists() or not directory.exists():
    raise FileNotFoundError(
        f"Missing dataset folders.\n"
        f"Make sure 'StitchingPointClouds/BlueObject' exist at {get_sample_data_path()}.\n\n"
        f"You can download the dataset (StitchingPointClouds.zip) from:\n"
        f"https://support.zivid.com/en/latest/api-reference/samples/sample-data.html"
    )

frame_1 = zivid.Frame(directory / "BlueObject.zdf")
frame_2 = zivid.Frame(directory / "BlueObjectSlightlyMoved.zdf")

print("Converting organized point clouds to unorganized point clouds and voxel downsampling")
unorganized_point_cloud_1 = frame_1.point_cloud().to_unorganized_point_cloud()
unorganized_point_cloud_2 = frame_2.point_cloud().to_unorganized_point_cloud()

print("Displaying point clouds before stitching")
unorganized_not_stitched_point_cloud = zivid.UnorganizedPointCloud()
unorganized_not_stitched_point_cloud.extend(unorganized_point_cloud_1)
unorganized_not_stitched_point_cloud.extend(unorganized_point_cloud_2)
display_pointcloud(
    xyz=unorganized_not_stitched_point_cloud.copy_data("xyz"),
    rgb=unorganized_not_stitched_point_cloud.copy_data("rgba")[:, 0:3],
)

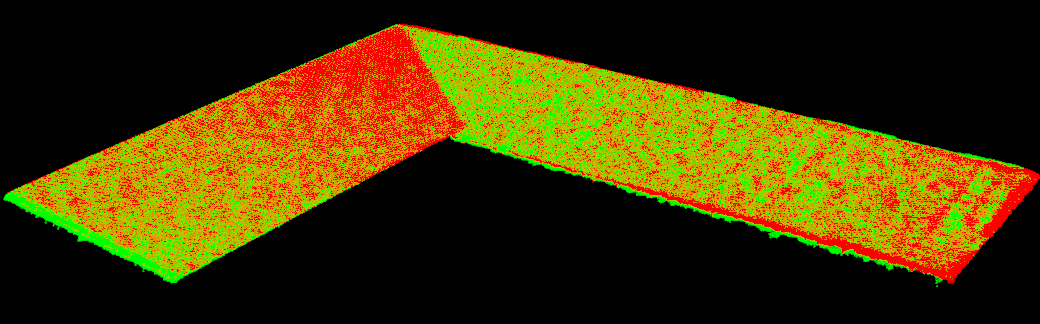

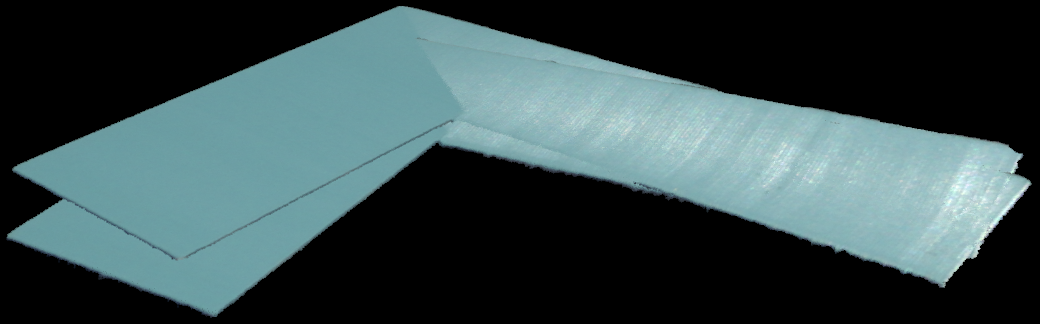

Voxel downsampling is applied to reduce the number of points for faster registration. We then compute the transformation matrix between two point clouds using Zivid::Experimental::Toolbox::localPointCloudRegistration(). The second point cloud is transformed using the resulting transform and added to the final point cloud (Zivid::UnorganizedPointCloud object containing the first point cloud). To complete the stitching, we apply voxel downsampling to the stitched point cloud, and display the result.

C++

source

std::cout << "Estimating transformation between point clouds" << std::endl;
const auto unorganizedPointCloud1LPCR = unorganizedPointCloud1.voxelDownsampled(1.0, 3);
const auto unorganizedPointCloud2LPCR = unorganizedPointCloud2.voxelDownsampled(1.0, 3);
const auto registrationParams = Zivid::Experimental::LocalPointCloudRegistrationParameters{};
const auto localPointCloudRegistrationResult = Zivid::Experimental::Toolbox::localPointCloudRegistration(
    unorganizedPointCloud1LPCR, unorganizedPointCloud2LPCR, registrationParams);

if(!localPointCloudRegistrationResult.converged())
{
    throw std::runtime_error("Registration did not converge...");
}

const auto pointCloud1ToPointCloud2Transform = localPointCloudRegistrationResult.transform();

std::cout << "Stitching and displaying point clouds" << std::endl;
Zivid::UnorganizedPointCloud finalPointCloud;
finalPointCloud.extend(unorganizedPointCloud1);
const auto unorganizedPointCloud2Transformed =
    unorganizedPointCloud2.transformed(pointCloud1ToPointCloud2Transform.toMatrix());
finalPointCloud.extend(unorganizedPointCloud2Transformed);
const auto stitchedPointCloudOpen3D = copyToOpen3D(finalPointCloud);
visualizePointCloud(stitchedPointCloudOpen3D);

std::cout << "Voxel-downsampling the stitched point cloud" << std::endl;
finalPointCloud = finalPointCloud.voxelDownsampled(2.0, 1);
std::cout << "visualize the overllaped point clouds" << std::endl;
const auto stitchedDownampledPointCloudOpen3D = copyToOpen3D(finalPointCloud);
visualizePointCloud(stitchedDownampledPointCloudOpen3D);

Python

source

print("Estimating transformation between point clouds")
unorganized_point_cloud_1_lpcr = unorganized_point_cloud_1.voxel_downsampled(voxel_size=1.0, min_points_per_voxel=3)
unorganized_point_cloud_2_lpcr = unorganized_point_cloud_2.voxel_downsampled(voxel_size=1.0, min_points_per_voxel=3)
registration_params = LocalPointCloudRegistrationParameters()
local_point_cloud_registration_result = local_point_cloud_registration(
    target=unorganized_point_cloud_1_lpcr, source=unorganized_point_cloud_2_lpcr, parameters=registration_params
)
assert local_point_cloud_registration_result.converged(), "Registration did not converge..."
point_cloud_1_to_point_cloud_2_transform = local_point_cloud_registration_result.transform()

print("Displaying point clouds after stitching")
final_point_cloud = zivid.UnorganizedPointCloud()
final_point_cloud.extend(unorganized_point_cloud_1)
unorganized_point_cloud_2_transformed = unorganized_point_cloud_2.transformed(
    point_cloud_1_to_point_cloud_2_transform.to_matrix()
)
final_point_cloud.extend(unorganized_point_cloud_2_transformed)
display_pointcloud(
    xyz=final_point_cloud.copy_data("xyz"),
    rgb=final_point_cloud.copy_data("rgba")[:, 0:3],
)

print("Voxel-downsampling the stitched point cloud")
final_point_cloud = final_point_cloud.voxel_downsampled(voxel_size=2.0, min_points_per_voxel=1)
display_pointcloud(
    xyz=final_point_cloud.copy_data("xyz"),
    rgb=final_point_cloud.copy_data("rgba")[:, 0:3],
)

Stitching with a rotary table

This example demonstrates stitching point clouds of an object placed on a rotary table. To stitch using this method, we need to:

1. Connect to a Zivid camera.

2. Load camera settings with a Region of Interest (ROI).

3. Capture multiple point clouds as the object rotates.

4. Convert each capture to an unorganized point cloud and downsample.

5. Register the new frame against the growing model.

6. Stitch the growing model into the new frame.

7. Downsample, display, and export the final result to a Polygon File Format (.ply).

Note

In this example, the rotary table completes a 360-degree rotation in about 25 seconds. Since each cycle takes more than 250 ms (including capture, transfer, processing, and stitching), we added a 1-second delay between captures. This results in approximately 20 captures from evenly distributed angles around the object.

We begin by connecting to the camera and loading a capture setting with a defined ROI. As mentioned earlier, the ROI is defined to include the object on the rotary table. It’s ideal to avoid capturing points of the table itself, but if the object is large enough, including some table points is generally acceptable.

C++

source

std::cout << "Connecting to camera" << std::endl;
auto camera = app.connectCamera();

std::cout << "Loading settings from file: " << settingsPath << std::endl;
const auto settings = Zivid::Settings(settingsPath);

Python

source

print("Connecting to camera")
camera = app.connect_camera()

settings_file = Path(user_options.settings_path)
print(f"Loading settings from file: {settings_file}")
settings = zivid.Settings.load(settings_file)

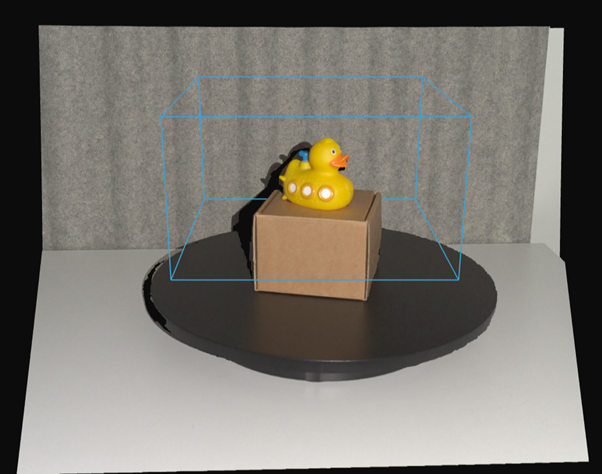

Demonstration of the region of interest placement in the point cloud.

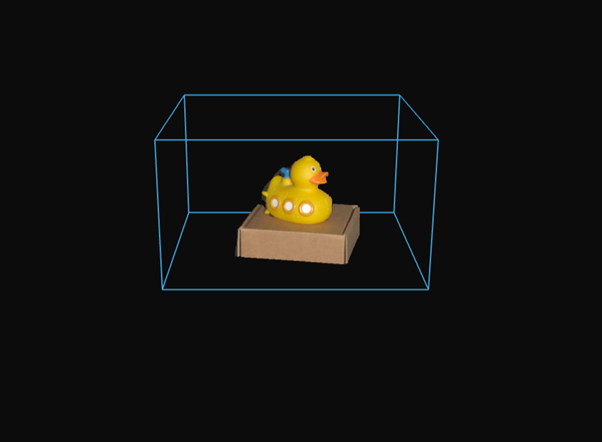

Result of the region of interest placement in the point cloud.

Next, we capture point clouds of the rotating object and apply Local Point Cloud Registration to align them. Each newly captured point cloud becomes the reference frame, and the previously stitched model is transformed into that frame.

Why transform the stitched model instead of the latest capture? Because transforming the latest capture into a fixed world frame would require applying all previous transformations, leading to accumulating error. By always transforming the existing model to the latest frame, the error remains localized and more manageable.

C++

source

Zivid::UnorganizedPointCloud unorganizedStitchedPointCloud;
auto registrationParams = Zivid::Experimental::LocalPointCloudRegistrationParameters{};
auto previousToCurrentPointCloudTransform = Zivid::Matrix4x4::identity();

for(int numberOfCaptures = 0; numberOfCaptures < 20; ++numberOfCaptures)
{
    std::this_thread::sleep_for(std::chrono::seconds(1));
    auto frame = camera.capture2D3D(settings);
    const auto unorganizedPointCloud = frame.pointCloud().toUnorganizedPointCloud().voxelDownsampled(1.0, 2);

    if(numberOfCaptures != 0)
    {
        const auto registrationResult = Zivid::Experimental::Toolbox::localPointCloudRegistration(
            unorganizedStitchedPointCloud,
            unorganizedPointCloud,
            registrationParams,
            previousToCurrentPointCloudTransform);

        if(!registrationResult.converged())
        {
            std::cout << "Registration did not converge..." << std::endl;
            continue;
        }

        previousToCurrentPointCloudTransform = registrationResult.transform().toMatrix();
        unorganizedStitchedPointCloud.transform(previousToCurrentPointCloudTransform.inverse());
    }

    unorganizedStitchedPointCloud.extend(unorganizedPointCloud);
    std::cout << "Captures done: " << numberOfCaptures << std::endl;
}

std::cout << "Voxel-downsampling the stitched point cloud" << std::endl;
unorganizedStitchedPointCloud = unorganizedStitchedPointCloud.voxelDownsampled(0.75, 2);

const auto unorganizedStitchedPointCloudOpen3D = copyToOpen3D(unorganizedStitchedPointCloud);
visualizePointCloud(unorganizedStitchedPointCloudOpen3D);

Python

source

previous_to_current_point_cloud_transform = np.eye(4)
unorganized_stitched_point_cloud = zivid.UnorganizedPointCloud()
registration_params = LocalPointCloudRegistrationParameters()

for number_of_captures in range(20):
    time.sleep(1)
    frame = camera.capture_2d_3d(settings)
    unorganized_point_cloud = (
        frame.point_cloud().to_unorganized_point_cloud().voxel_downsampled(voxel_size=1.0, min_points_per_voxel=2)
    )

    if number_of_captures != 0:
        local_point_cloud_registration_result = local_point_cloud_registration(
            target=unorganized_stitched_point_cloud,
            source=unorganized_point_cloud,
            parameters=registration_params,
            initial_transform=previous_to_current_point_cloud_transform,
        )
        if not local_point_cloud_registration_result.converged():
            print("Registration did not converge...")
            continue
        previous_to_current_point_cloud_transform = local_point_cloud_registration_result.transform().to_matrix()

        unorganized_stitched_point_cloud.transform(np.linalg.inv(previous_to_current_point_cloud_transform))
    unorganized_stitched_point_cloud.extend(unorganized_point_cloud)

    print(f"Captures done: {number_of_captures}")

print("Voxel-downsampling the stitched point cloud")
unorganized_stitched_point_cloud = unorganized_stitched_point_cloud.voxel_downsampled(
    voxel_size=0.75, min_points_per_voxel=2
)

display_pointcloud(
    xyz=unorganized_stitched_point_cloud.copy_data("xyz"),
    rgb=unorganized_stitched_point_cloud.copy_data("rgba")[:, 0:3],
)

Note

Since the rotary table rotates at a constant angular velocity, the transformation between consecutive point clouds should be similar. Therefore, the previous transformation can be used as an initial guess for the next registration.

Finally, the stitched result is further voxel-downsampled and displayed. See below the stitched point cloud result.
