机械接口

尺寸

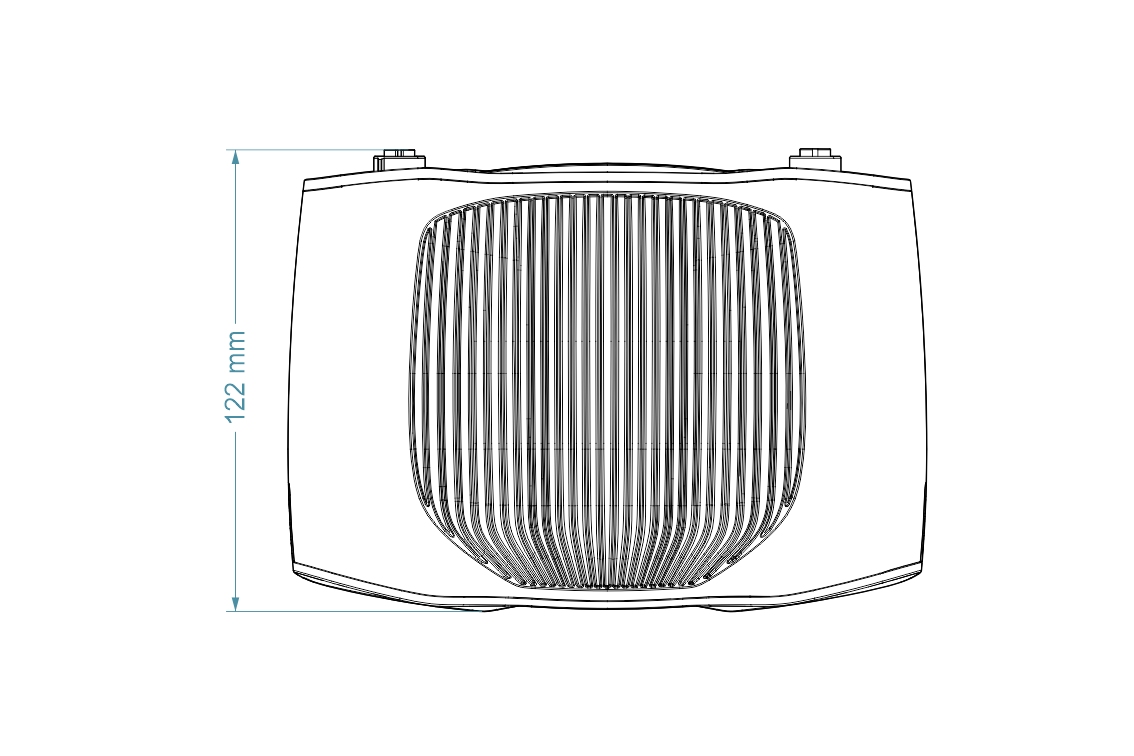

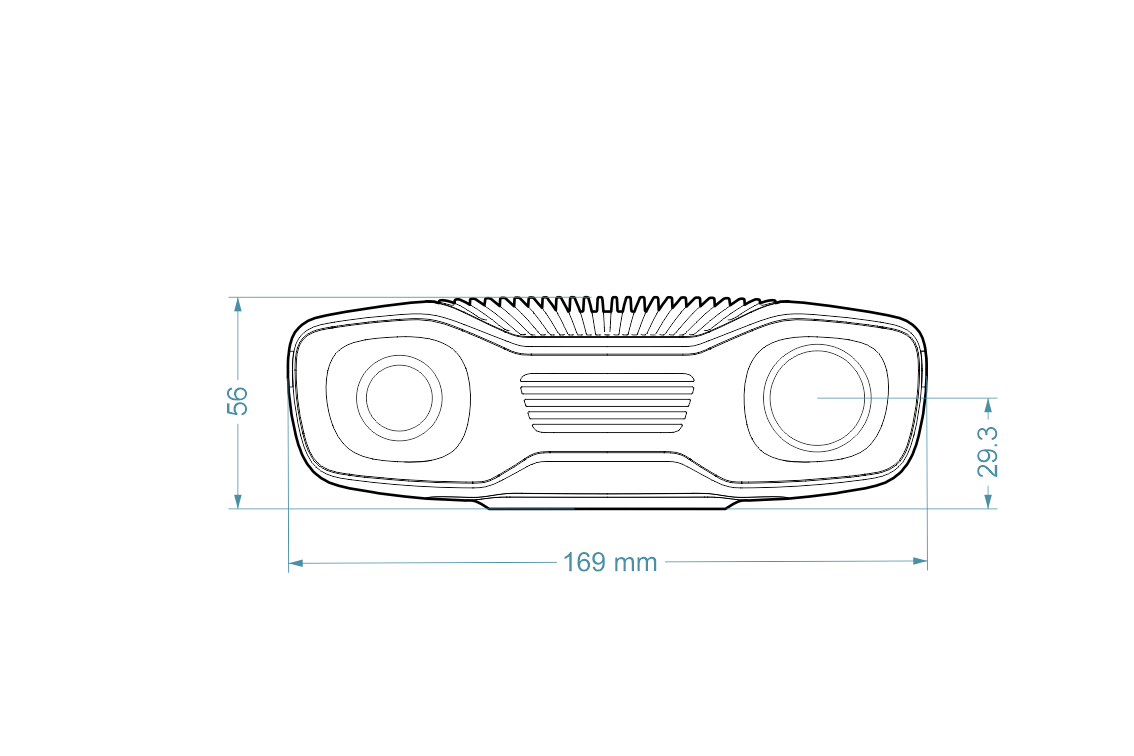

../../../_images/zivid-two-front-view-dimensions.png ../../../_images/zivid-two-top-view-dimensions.png

安装规格

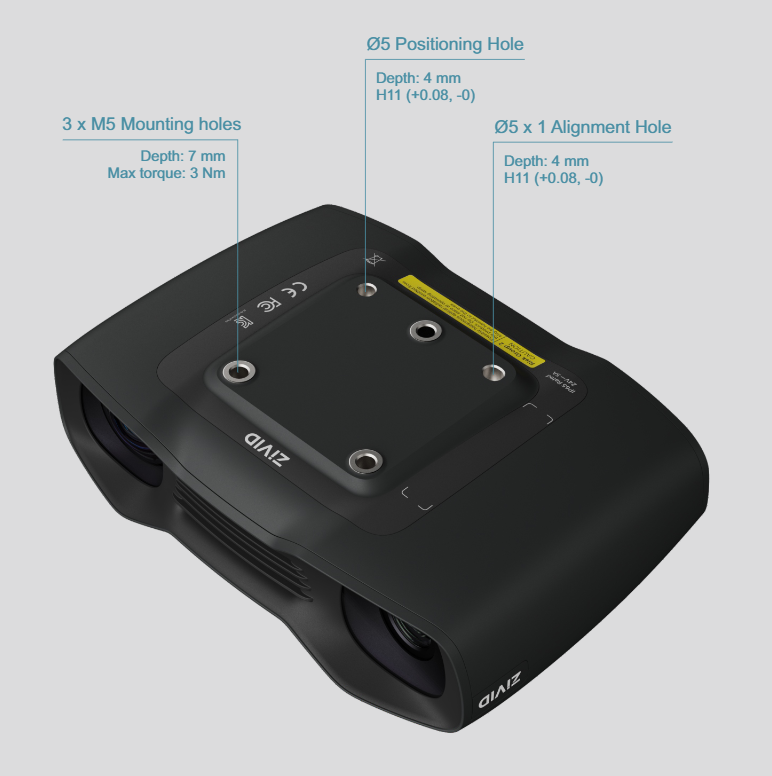

The Zivid Two camera has three M5 mounting holes, one Ø5 positioning hole, and one Ø5x1 obround alignment hole. We recommend using DIN 912 / ISO 4762 Hexagon or ISO 14579 Hexalobular socket head cap screws in stainless steel (A2 or A4). To ensure not to damage the threads, we recommend not exceeding the specified maximum torque value when fastening the screws.

../../../_images/zivid-two-mounting.png

安装面平整度

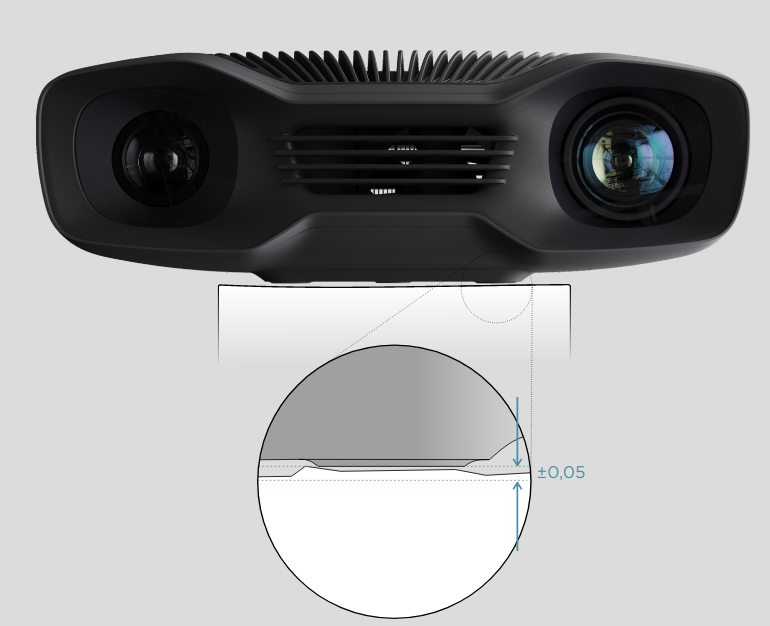

为获得最佳性能，我们建议安装表面平整度为±0.05mm或更好。在某些情况下，将相机安装到不平整的表面会影响标定。

我们建议使 用 Zivid Camera Mounts 中的选件以确保相机安装不会出现问题。

../../../_images/zivid_two_flatness_of_mounting_surface.png

继续阅读以了解更多关于适用于Zivid相机的 安装 的选件。
